HR 6657

type ST · family 1BP1 · 42 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

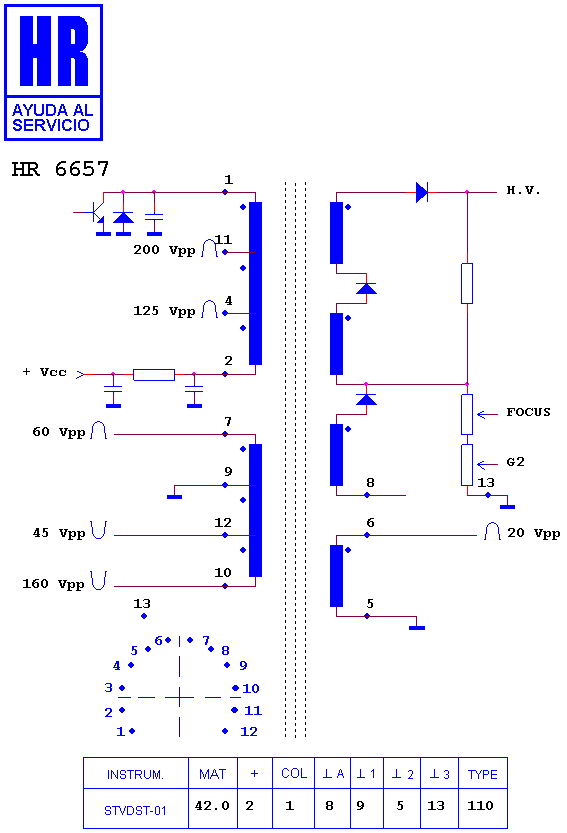

Schematic diagram for HR 6657
schematic

Manufacturer equivalents (8)

00002971000 · 1182.1637 · 1182.1637A · 30002060 · 4031702110 · 4031705110 · FAT30787 · HR 6657

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7429 · HR 8401 · HR 7680 · HR 6167 · HR 8769 · HR 7317 · HR 7319 · HR 7311 · HR 7320 · HR 7321 · HR 8454 · HR 8080

Fitted to (4)

SEG CT 8100 · UNIVERSUM 003.677 5 · UNIVERSUM 036.775 · UNIVERSUM FT 8183
