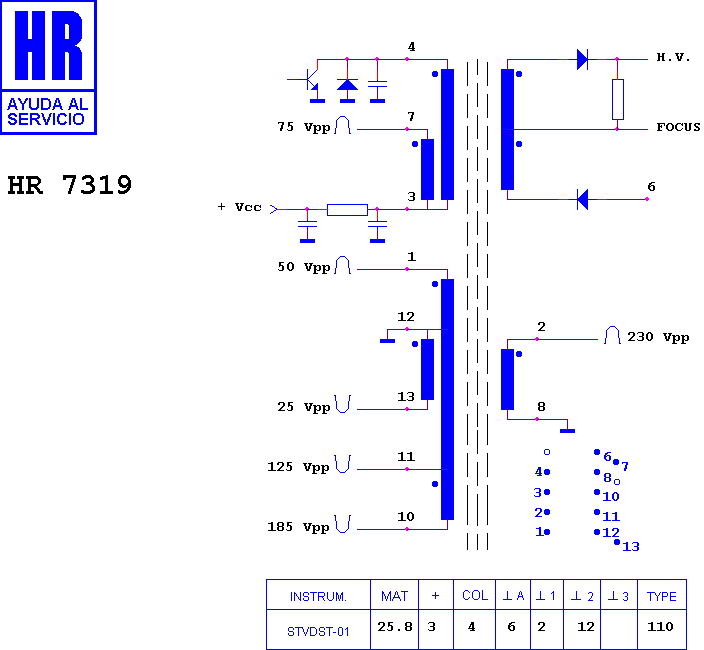

HR 7319

type ST · family 1OS1 · 25.8 kV maximum anode voltage · 110° deflection · 6 windings · 297 g

Manufacturer equivalents (10)

259.729 · 266.719 · 40317-10 · 40317-26 · 473046.00 · 47310040 · 473100E0.P1 · 8014087 · AT 110/25/21 · FAT 30705

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7311 · HR 7320 · HR 7321 · HR 7317 · HR 6550 · HR 80077 · HR 6139 · HR 7092 · HR 8080 · HR 6227 · HR 8800 · HR 80069

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead
• HR 16529 — Focus control

Fitted to (16)

BANG & OLUFSEN - B&O 3140 · BANG & OLUFSEN - B&O 3141 · BANG & OLUFSEN - B&O 3142 · BANG & OLUFSEN - B&O 3143 · BANG & OLUFSEN - B&O 3144 · BANG & OLUFSEN - B&O 3145 · BANG & OLUFSEN - B&O 3146 · BANG & OLUFSEN - B&O 8500 · BANG & OLUFSEN - B&O 9000 · BANG & OLUFSEN - B&O BEOVISION 8500 · BANG & OLUFSEN - B&O BEOVISION 9000 · BANG & OLUFSEN - B&O BEOVISION MX 3000 · BANG & OLUFSEN - B&O BEOVISION MX 8500 · BANG & OLUFSEN - B&O CHASIS MX 3000 · BANG & OLUFSEN - B&O CHASIS MX 8500 · BANG & OLUFSEN - B&O MX 3000

Search this part in the full database
