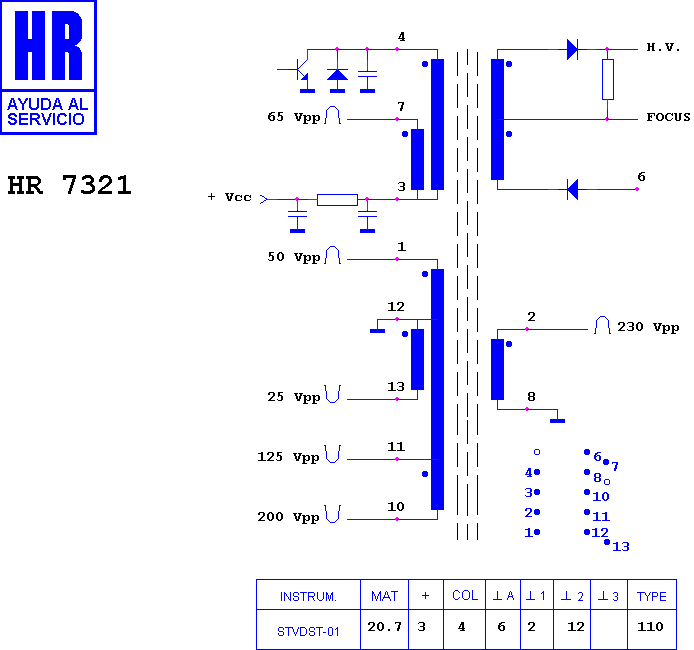

HR 7321

type ST · family 1OS1 · 20.7 kV maximum anode voltage · 110° deflection · 6 windings · 297 g

Manufacturer equivalents (14)

003350110 · 259.730 · 266.720 · 40317-03 · 40317-21 · 473047.00 · 473100.35 · 473100.D5/P1 · 80140897 · 8014097 · AT 110/25/22 · AT 110/25/26 · FAT 30353 · KN 30353

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7319 · HR 7311 · HR 7320 · HR 7317 · HR 6558 · HR 8080 · HR 6227 · HR 8769 · HR 6139 · HR 7093 · HR 8524 · HR 8454

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead
• HR 16529 — Focus control

Fitted to (21)

BANG & OLUFSEN - B&O 3201 · BANG & OLUFSEN - B&O 3203 · BANG & OLUFSEN - B&O 3204 · BANG & OLUFSEN - B&O 3206 · BANG & OLUFSEN - B&O 3207 · BANG & OLUFSEN - B&O 3211 · BANG & OLUFSEN - B&O 3212 · BANG & OLUFSEN - B&O 3213 · BANG & OLUFSEN - B&O 3214 · BANG & OLUFSEN - B&O 3216 · BANG & OLUFSEN - B&O 3217 · BANG & OLUFSEN - B&O 3218 · BANG & OLUFSEN - B&O 4500 · BANG & OLUFSEN - B&O 5000 · BANG & OLUFSEN - B&O BEOVISION MX 4500 · BANG & OLUFSEN - B&O BEOVISION MX 5000 · BANG & OLUFSEN - B&O CHASIS MX 4500 · BANG & OLUFSEN - B&O CHASIS MX 5000 · BANG & OLUFSEN - B&O CHASIS MX 5500 · BANG & OLUFSEN - B&O MX 4500 · BANG & OLUFSEN - B&O MX 5000
