HR 6227

type ST · family 1BP1 · 26.7 kV maximum anode voltage · 110° deflection · 4 windings · 348 g

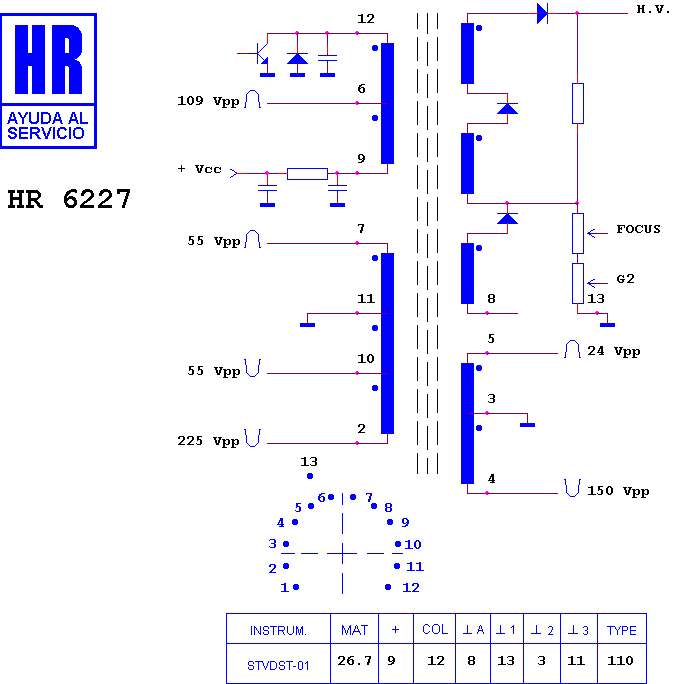

Schematic diagram for HR 6227
schematic

Manufacturer equivalents (6)

1182.0446 · 1182.0448 · 1182.04481 · JT 122 · JT132 · MAT33468

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6270 · HR 6257 · HR 7387 · HR 8769 · HR 7393 · HR 8080 · HR 7429 · HR 6647 · HR 7232 · HR 8882 · HR 6139 · HR 80069

Fitted to (7)

INTERVIDEO VIDEO GAME LS 152 · INTERVIDEO VIDEO GAME SL 152 · SELTI MONITOR · SELTI SL 152 · SELTI SL 70006 · SELTI VIDEO GAME SL 152 · VIDEOTECNICA CHASIS LS 110§
