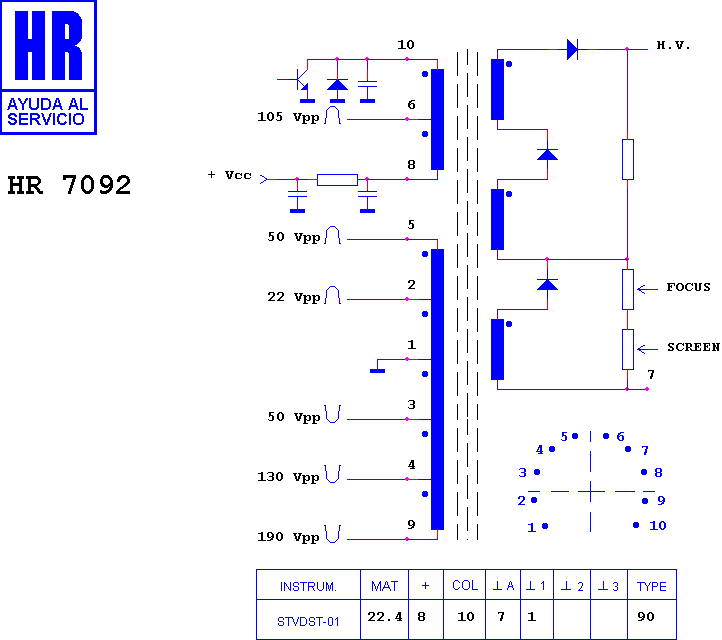

HR 7092

2 windings

Manufacturer equivalents (2)

1105.0727 · ME/6011-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7530 · HR 7541 · HR 6270 · HR 6257 · HR 7575 · HR 7581 · HR 6227 · HR 7093 · HR 7623 · HR 7680 · HR 7037 · HR 6155

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

CENTURY TVC 16" 20"
