HR 7623

type ST · family 1YP · 24 kV maximum anode voltage · 110° deflection · 3 windings · 388 g

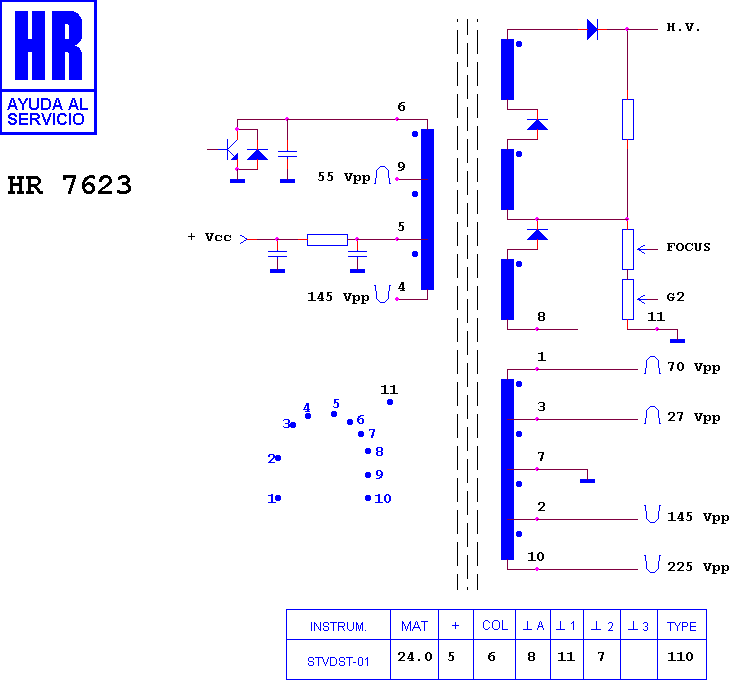

Schematic diagram for HR 7623
schematic

Manufacturer equivalents (8)

2859 200 004 · 32859 200 004 · AFS 221 · FAT30188 · FCR 25 A 003 · FCR 25 A 003 R · HR 7623 · KN30188

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7680 · HR 8769 · HR 8454 · HR 6270 · HR 6657 · HR 6170 · HR 6393 · HR 6139 · HR 8552 · HR 7317 · HR 8823 · HR 7319

Fitted to (7)

SAMSUNG CB 5913 W · SAMSUNG CB 5915 · SAMSUNG CB 6813 W · SAMSUNG CHASIS 25 P 88 MT · SAMSUNG CHASIS MTT S 2 · SAMSUNG CX 5913 W · SAMSUNG CX 6813 W
