HR 8454

type ST · family 1XP1 · 39 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

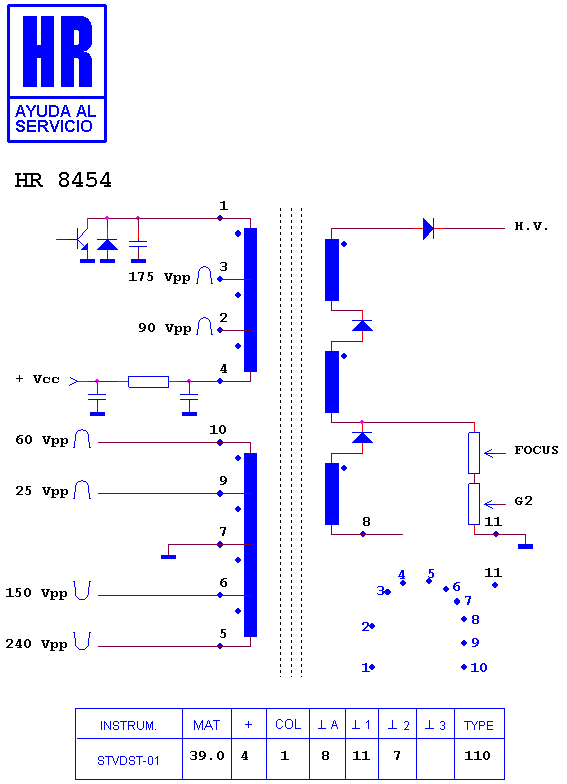

Schematic diagram for HR 8454
schematic

Manufacturer equivalents (2)

154 177 X · 9 GVZ 0674

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8390 · HR 6721 · HR 6657 · HR 6558 · HR 80069 · HR 6070 · HR 80320 · HR 80077 · HR 8800 · HR 8401 · HR 6139 · HR 6081

Fitted to (3)

GOLDSTAR - LG CHASIS NC 95 M · GOLDSTAR - LG CMT 9072 AX · GOLDSTAR - LG CMT 9842 XX
