HR 7855

type ST · family 1CAP · 25.2 kV maximum anode voltage · 110° deflection · 3 windings · 270 g

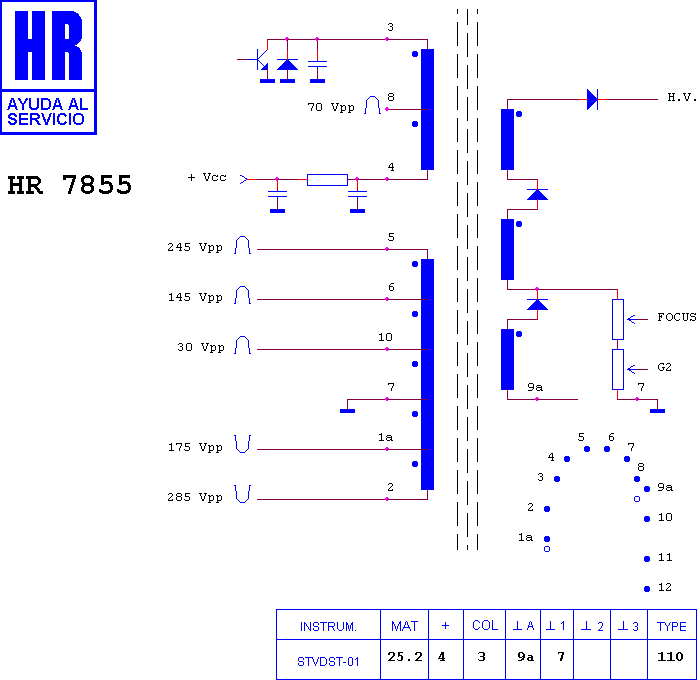

Schematic diagram for HR 7855
schematic

Manufacturer equivalents (6)

002 651 0500 · 26510500 · F 1646 CE · FAT3878 · ME/6168-00 · RTRNF1646CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6070 · HR 8401 · HR 8825 · HR 6375 · HR 7863 · HR 6199 · HR 7913 · HR 6687 · HR 6036 · HR 8429 · HR 8454 · HR 6139

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

SHARP C 1410 ED · SHARP DV 1410 · SHARP DV 1410 SPN
