HR 6376

type ST · family 1AP2 · 25.5 kV maximum anode voltage · 110° deflection · 4 windings · 360 g

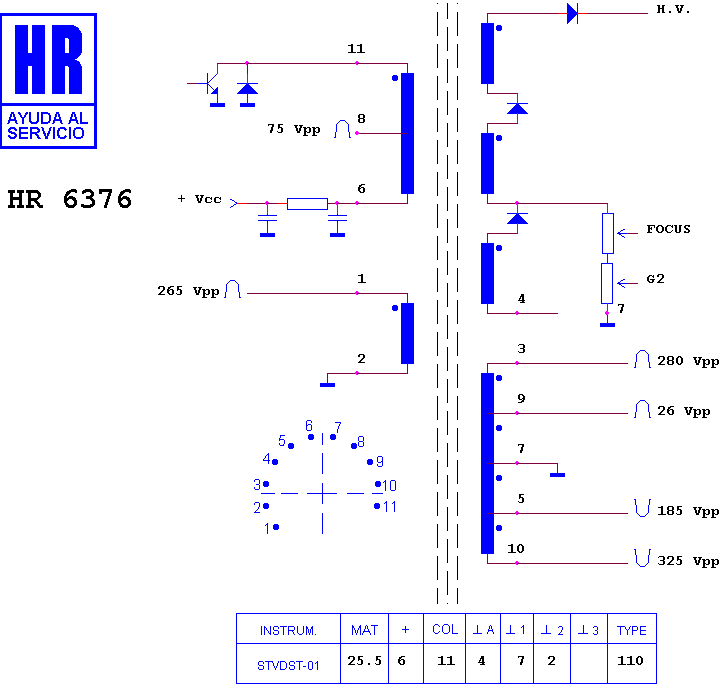

Schematic diagram for HR 6376
schematic

Manufacturer equivalents (15)

002 651 0264 · 26510264 · AFS379 · F 0004 CE · F 0004 ME · F 0004 PE · F 0004 PE-D · F 1308 CE · F 1308 CE-D · F 1308 PE · RTRNF0004CEZZ · RTRNF0004MEZZ · RTRNF0004PEZZ · RTRNF1308CEZZ · RTRNF1308PEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8529 · HR 6036 · HR 6070 · HR 6375 · HR 6123 · HR 7855

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SHARP C 2999 B
