HR 8529

type ST · family 1VCS · 30 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

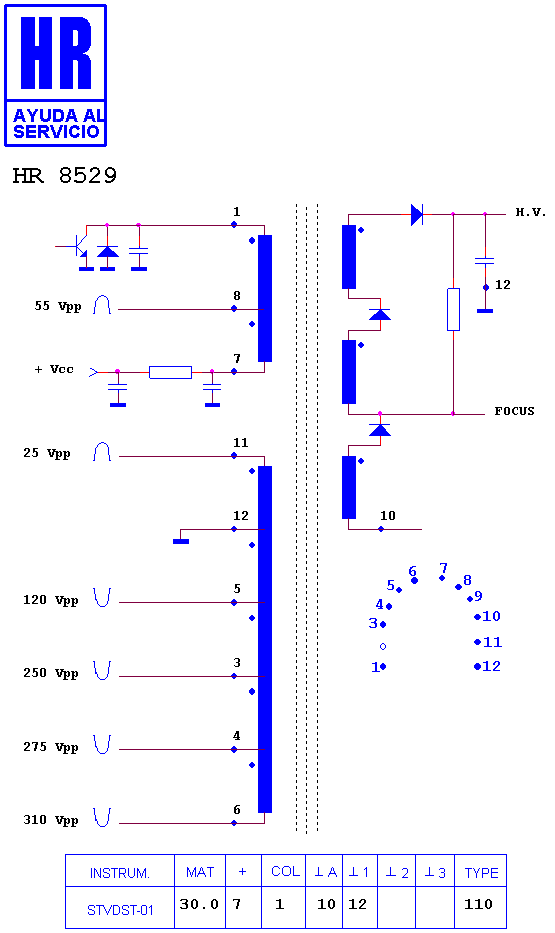

Schematic diagram for HR 8529
schematic

Manufacturer equivalents (9)

0427975 · 1118736 · 1372.9005 · 1372.9005A · 427975 · 429019 · 439188 · GN427975 · HR 8529

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6667 · HR 6376 · HR 6298 · HR 6123

Fitted to (13)

BELSTAR 2897 · BELSTAR 3297 · GORENJE CHASIS E 9 · LAVIS CHASIS E 9 110§ · LAVIS LA 2885 · QUELLE 003.431.4 · QUELLE FT 4286 · UNIVERSUM 003.430 6 · UNIVERSUM 003.431 4 · UNIVERSUM 042.797 5 · UNIVERSUM FT 4286 · WHARFDALE CHASIS E 9-1 · WHARFDALE CTV 850

Search this part in the full database
