HR 6123

type ST · family 1BP1 · 24.6 kV maximum anode voltage · 110° deflection · 3 windings · 364 g

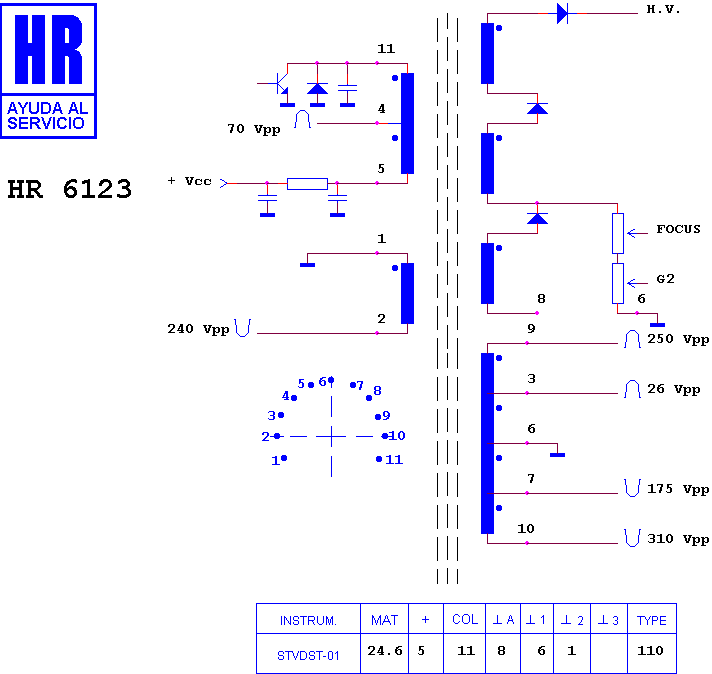

Schematic diagram for HR 6123
schematic

Manufacturer equivalents (10)

F 0001 ME · F 0001 PE · F 1215 CE · F 1216 CE · F 1216 CE-S · F 1216 PE · F0001KJ · RTRNF0001PEZZ · RTRNF1215CEZZ · RTRNF1216CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6376 · HR 6036 · HR 7626 · HR 6070 · HR 7855 · HR 6375 · HR 8529

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
