HR 8080

type ST · family 1AP2 · 35 kV maximum anode voltage · 110° deflection · 3 windings · 324 g

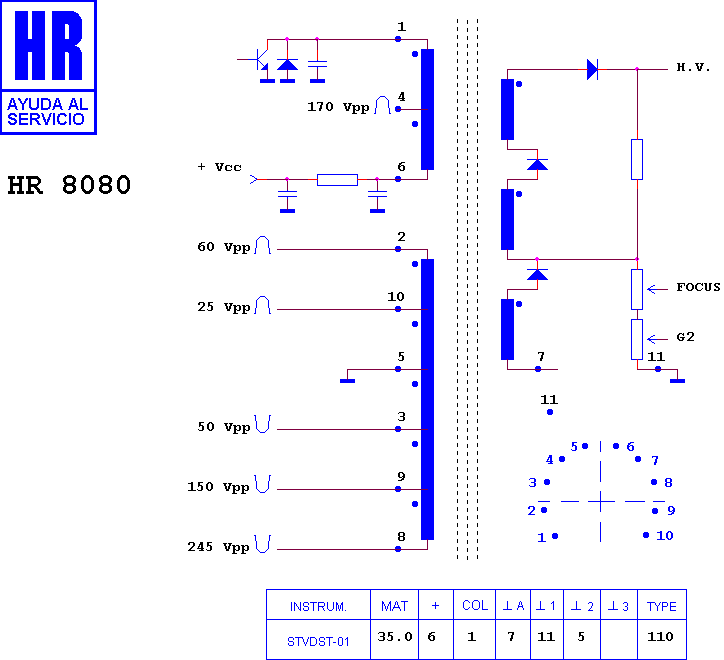

Schematic diagram for HR 8080
schematic

Manufacturer equivalents (9)

003031010 · 2434361 · 472994.00 · AFS 332 · FCV 1422 E 03 · HFT838GIV · RO 269 · TR 269 · Y 260971

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6657 · HR 8454 · HR 7429 · HR 6386 · HR 6647 · HR 6227 · HR 6155 · HR 7321 · HR 7093 · HR 7087 · HR 6393 · HR 7317

Fitted to (5)

VIDEOTON TS 2623 · VIDEOTON TS 2626 SP · VIDEOTON WT 6314 · WALTHAM 537 · WALTHAM WT 537

Search this part in the full database
