HR 6230

type ST · family 1BP1 · 25.5 kV maximum anode voltage · 110° deflection · 4 windings · 362 g

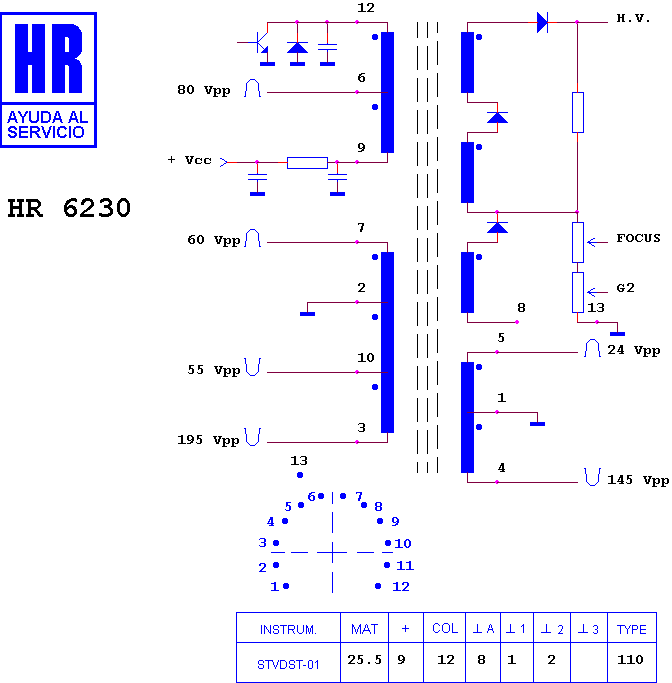

Schematic diagram for HR 6230
schematic

Manufacturer equivalents (5)

1182.0087 · 1182.0557 · 28036030 · 946.369 · KN 30374

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6023 · HR 6270 · HR 7092 · HR 8390 · HR 6721 · HR 7530 · HR 8786 · HR 6730 · HR 8730 · HR 7429 · HR 7037 · HR 6005
