HR 8786

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

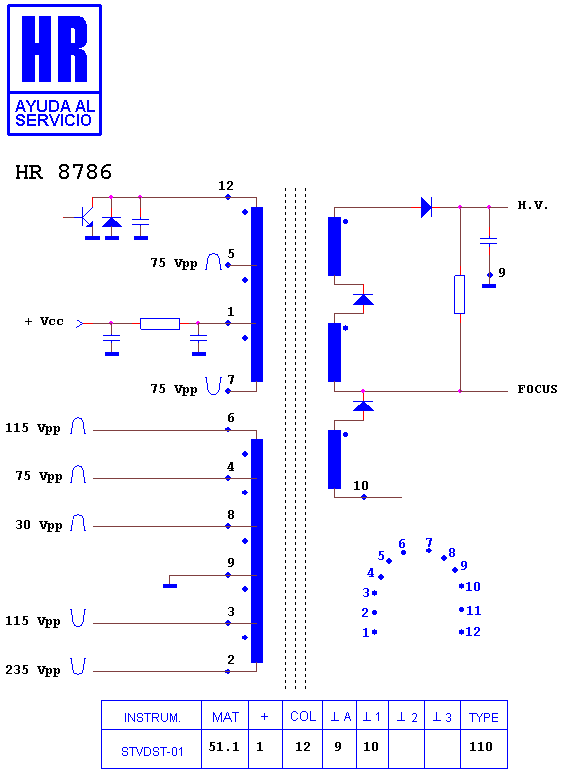

Schematic diagram for HR 8786
schematic (archived)

Manufacturer equivalents (9)

1372.9002 · 1372.90020 · 1372.9002A · 1372.9020 · 1372.9020A · 1372.9020B · 276-28032 · 276-28032.050 · HR 8786

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8951 · HR 7174 · HR 7222 · HR 80109 · HR 8900 · HR 8388 · HR 8703 · HR 80117 · HR 80039 · HR 8552 · HR 8430 · HR 80124
