HR 80039

31.5 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

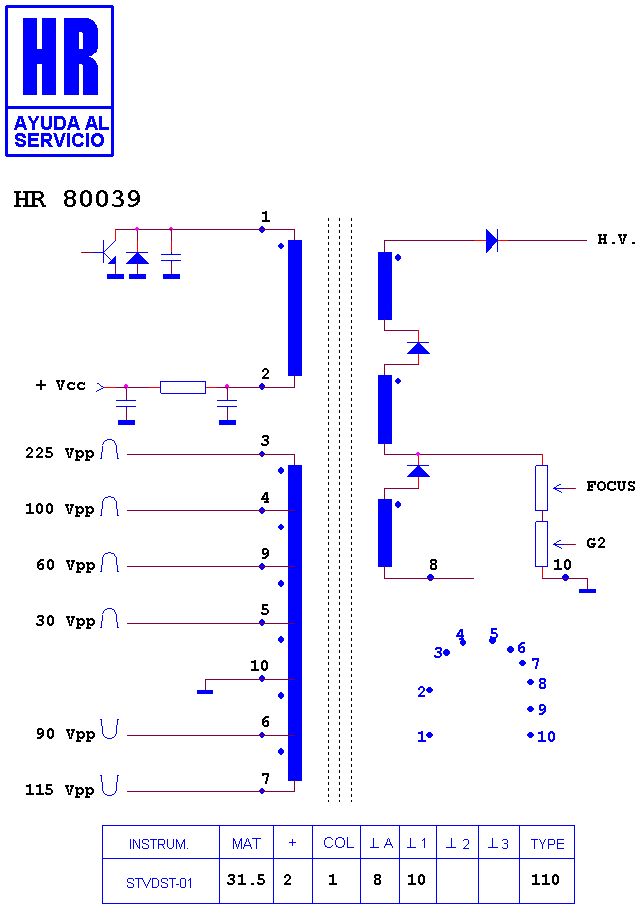

Schematic diagram for HR 80039
schematic (archived)

Manufacturer equivalents (5)

1342.0048 · 1342.0048A · 1342.0048B · 242253102559 · 53102559

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80124 · HR 8703 · HR 8900 · HR 7174 · HR 7222 · HR 8337 · HR 80028 · HR 8552 · HR 8388 · HR 8430 · HR 80109 · HR 8823

Fitted to (14)

PHILIPS 21 PT 5408 · PHILIPS 21 PT 5408/01 · PHILIPS 21 PT 5408/58 S · PHILIPS 24 PW 6407 · PHILIPS 24 PW 6407/05 · PHILIPS 24 PW 6518 · PHILIPS 25 PT 5107 · PHILIPS 25 PT 5107/01 · PHILIPS 25 PT 5107/58 · PHILIPS 28 PT 5107 · PHILIPS 28 PT 5107/01 · PHILIPS 28 PT 5107/58 · PHILIPS CHASIS L 01.1 21 · PHILIPS CHASIS L 01.1 E

Search this part in the full database
