HR 80124

33.6 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

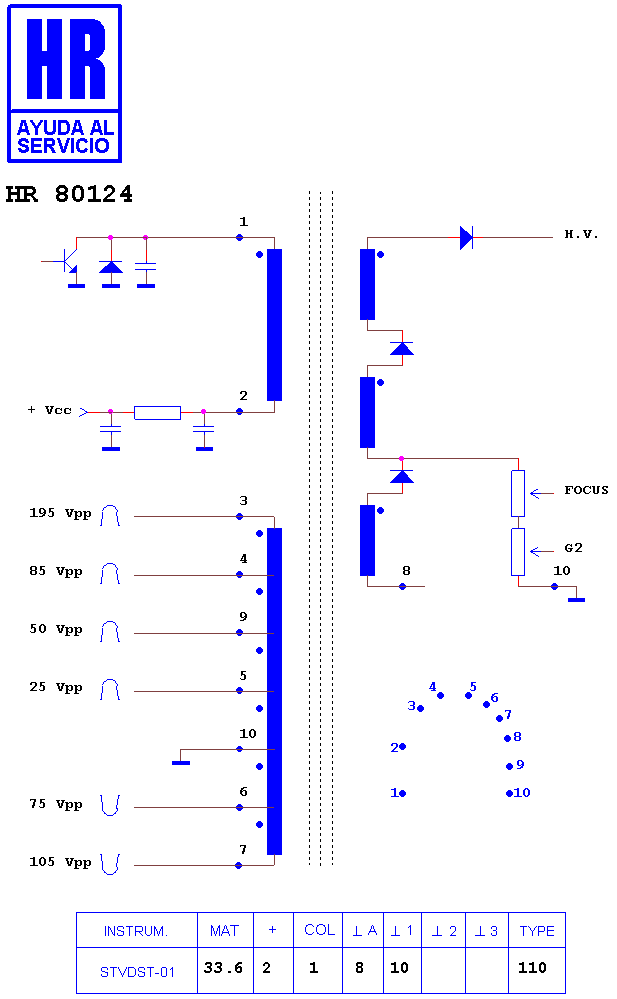

Schematic diagram for HR 80124
schematic (archived)

Manufacturer equivalents (4)

13821351 · 312813821351 · AT2078/21351 · AT2078/21352

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8703 · HR 7174 · HR 8800 · HR 7222 · HR 80028 · HR 80039 · HR 8552 · HR 8900 · HR 8388 · HR 8823 · HR 80109 · HR 8769

Fitted to (5)

PHILIPS 25 PT 5107 · PHILIPS 25 PT 5107/01 · PHILIPS 28 PT 5107 · PHILIPS 28 PT 5107/01 · PHILIPS CHASIS L 01.1 E
