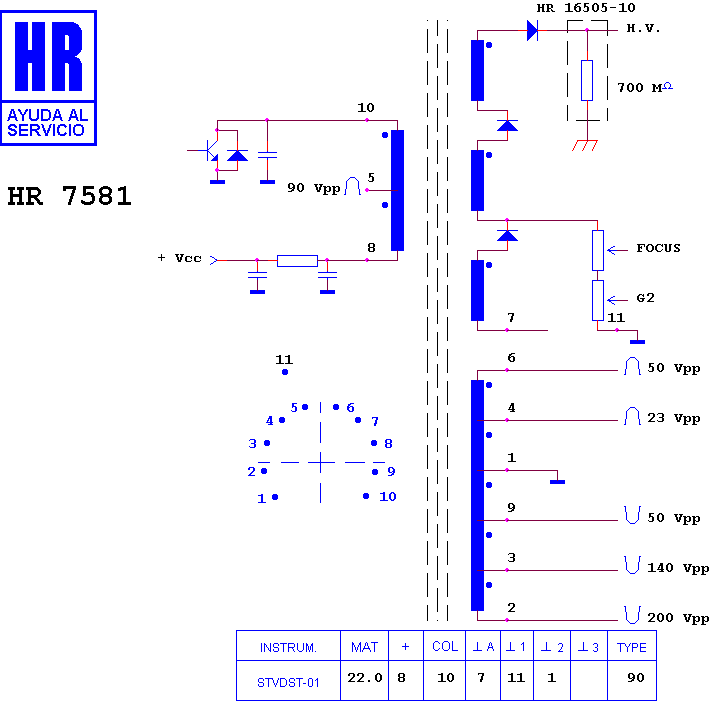

HR 7581

type ST · family 1NP · 22 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

Manufacturer equivalents (1)

DS 16 BLED

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7575 · HR 7541 · HR 7088 · HR 7092 · HR 7530 · HR 7393 · HR 8059 · HR 8052 · HR 6270 · HR 6155 · HR 8012 · HR 8085

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1663 — EHT anode lead

Search this part in the full database
