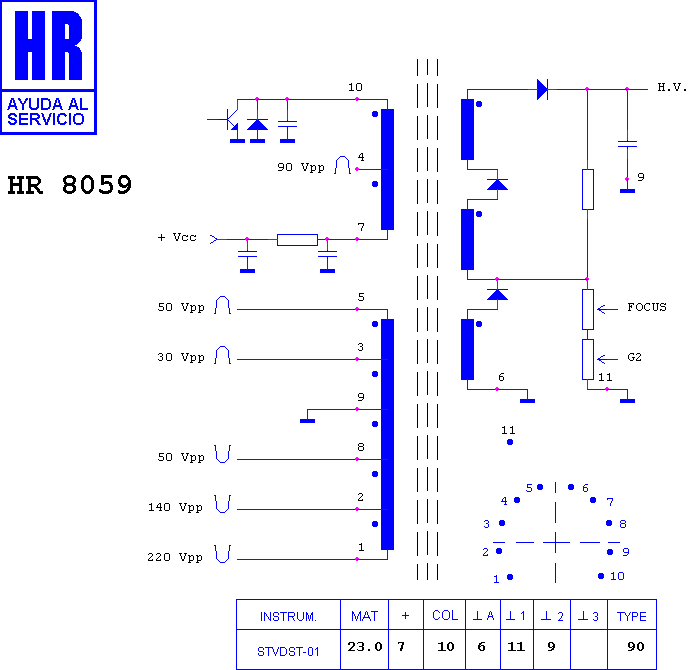

HR 8059

type ST · family 1ACP · 23 kV maximum anode voltage · 90° deflection · 3 windings · 434 g

Manufacturer equivalents (1)

JT 162

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8052 · HR 8012 · HR 7393 · HR 7575 · HR 7581 · HR 8085 · HR 7053 · HR 7801 · HR 7467
