HR 8012

21.7 kV maximum anode voltage · 90° deflection · 3 windings · 434 g

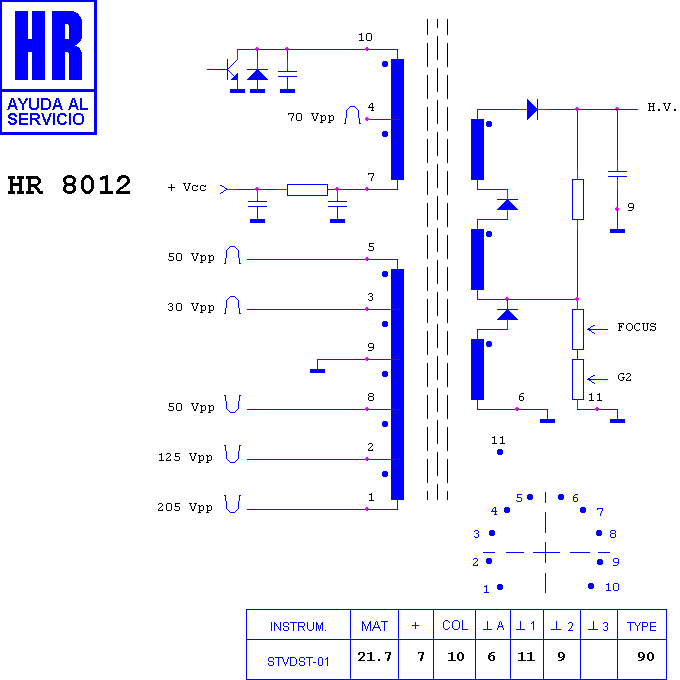

Schematic diagram for HR 8012 — schematic

Schematic diagram for HR 8012 — schematic (archived)

Manufacturer equivalents (1)

HR8012

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8059 · HR 8052 · HR 7581 · HR 6410 · HR 6411 · HR 7053 · HR 7575
