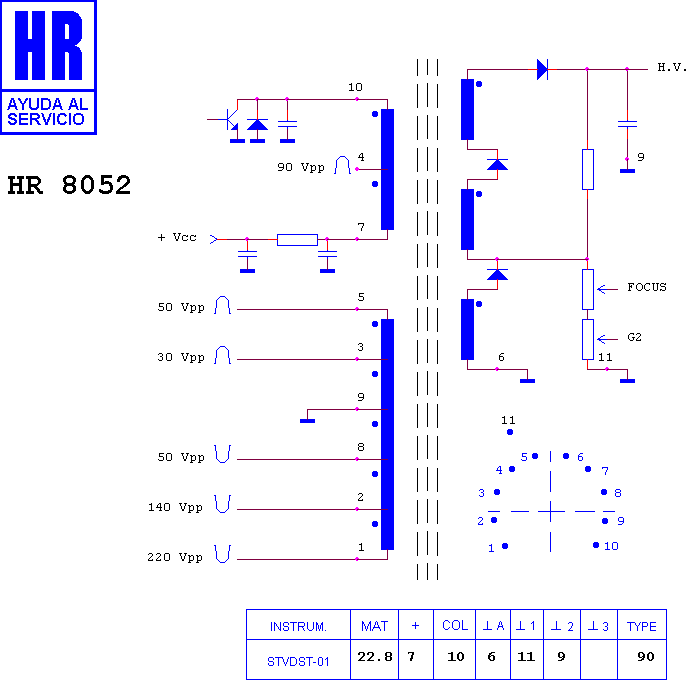

HR 8052

type ST · family 1ACP · 22.8 kV maximum anode voltage · 90° deflection · 3 windings · 434 g

Manufacturer equivalents (1)

JT 163

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8059 · HR 8012 · HR 7801 · HR 7053 · HR 7575 · HR 7581 · HR 7467 · HR 8085
