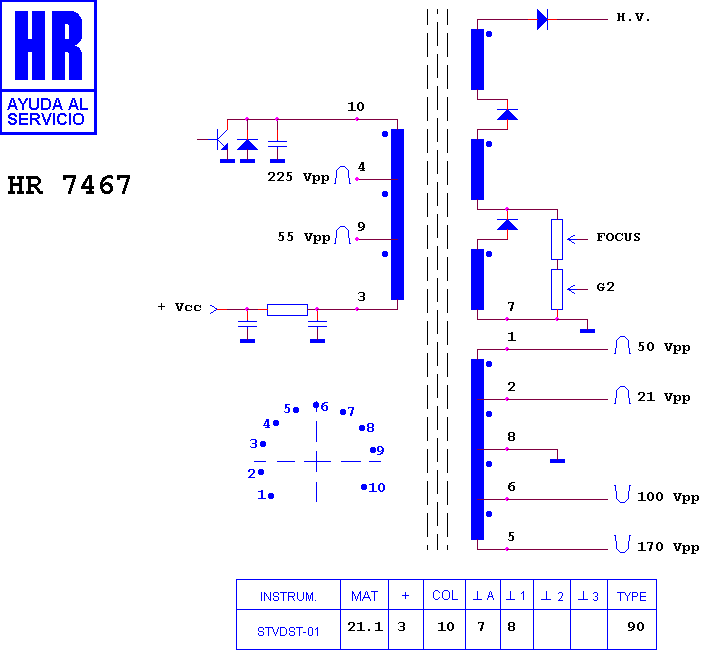

HR 7467

type ST · family 1XP1 · 21.1 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (8)

154 074 K · 154 074 R · 154 074 S · 154 074 V · 154 074 W · 154 082 R · 154 146 B · 154 A 02 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7317 · HR 8928 · HR 7575 · HR 7581 · HR 7053 · HR 7393 · HR 7530 · HR 8059 · HR 8052 · HR 7621 · HR 6155 · HR 7416

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

IRT TC 1401 · LG - GOLDSTAR CHASIS NC 05 X 4 · LG - GOLDSTAR CMS 4421 · LG - GOLDSTAR CMX 4540 · LG - GOLDSTAR CN 4461
