HR 6647

type ST · family 1BS1 · 32.1 kV maximum anode voltage · 110° deflection · 4 windings · 367 g

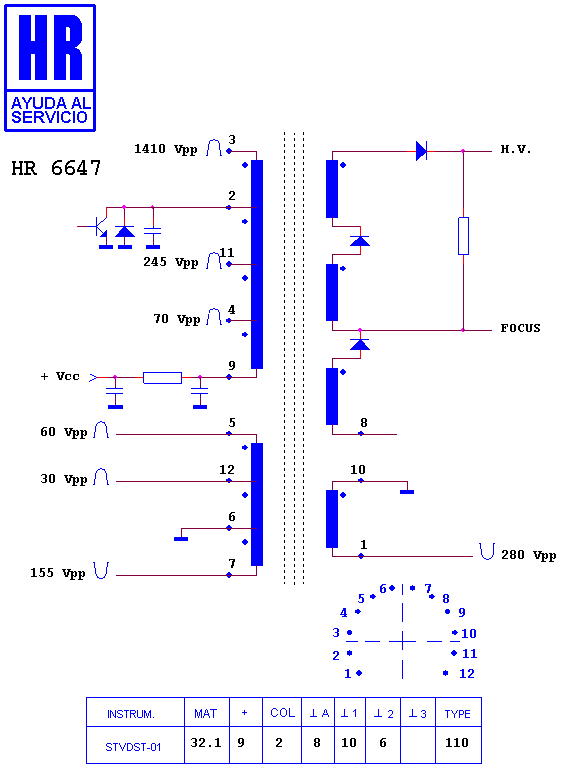

Schematic diagram for HR 6647
schematic

Manufacturer equivalents (8)

003370110 · 3243-38329 · 3243-38329.00 · 38 329 00 · 478045.00 · FAT30411 · HR 6647 · KN30411

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6386 · HR 7429 · HR 8080 · HR 6558 · HR 80108 · HR 7321 · HR 7319 · HR 7311 · HR 7320 · HR 7317 · HR 6170 · HR 6227

Fitted to (10)

DUAL STV 12-70310 · SCHNEIDER 42 720 · SCHNEIDER 70 310 · SCHNEIDER CHASIS DTV 2 · SCHNEIDER DTV 2 VEGAS · SCHNEIDER DTV 2-7027 · SCHNEIDER LAS VEGAS 14 · SCHNEIDER LAS VEGAS 70 · SCHNEIDER LAS VEGAS 70 PIP · SCHNEIDER STV 12
