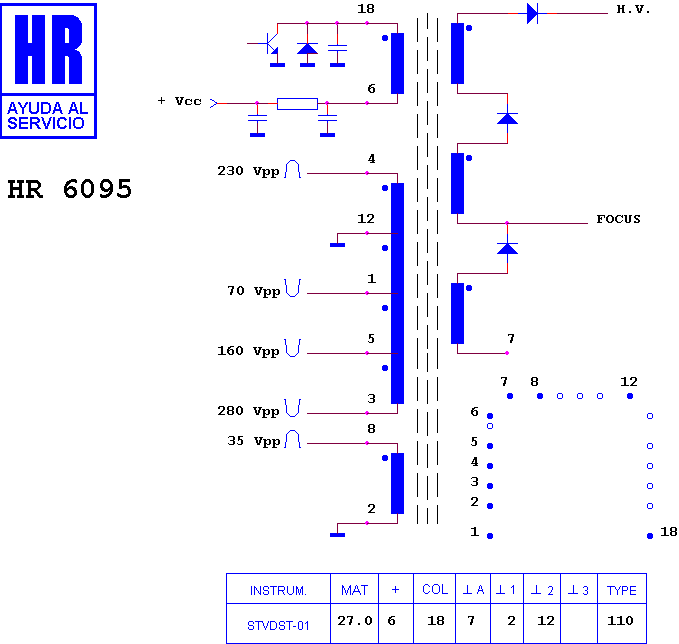

HR 6095

type ST · family 1IS1 · 27 kV maximum anode voltage · 110° deflection · 4 windings · 406 g

Manufacturer equivalents (3)

3028 · 30280.00 · 37026.00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6098 · HR 6096 · HR 8766 · HR 6647 · HR 6372 · HR 8281 · HR 6594 · HR 80116 · HR 8993 · HR 80031 · HR 8149 · HR 7068

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead
• HR 16524 — Focus control
