HR 8993

32.4 kV maximum anode voltage · 110° deflection · 3 windings · 380 g

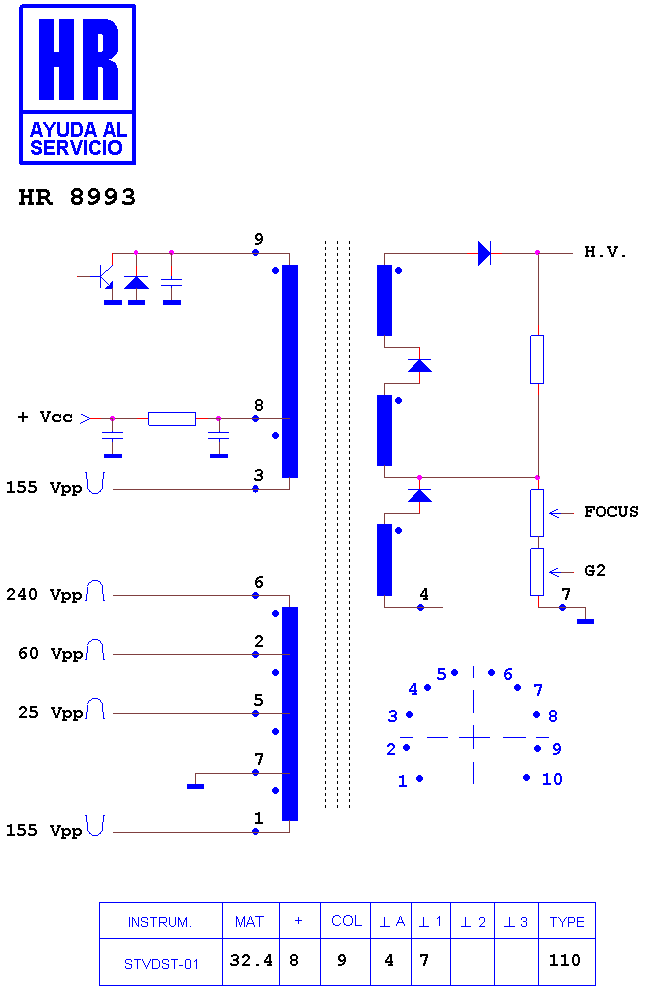

Schematic diagram for HR 8993
schematic (archived)

Manufacturer equivalents (8)

1352.3030 · 1352.3030A · 1352.3030C · 29201.665.06 · 29201.665.0601 · 29221.665.06 · 29221.665.0601 · HR 8993

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7223 · HR 8543 · HR 6585 · HR 8596 · HR 80081 · HR 8149 · HR 80031 · HR 80243 · HR 8217 · HR 8968 · HR 7392 · HR 7892
