HR 8543

type ST · family 1AP1 · 27.6 kV maximum anode voltage · 110° deflection · 4 windings · 380 g

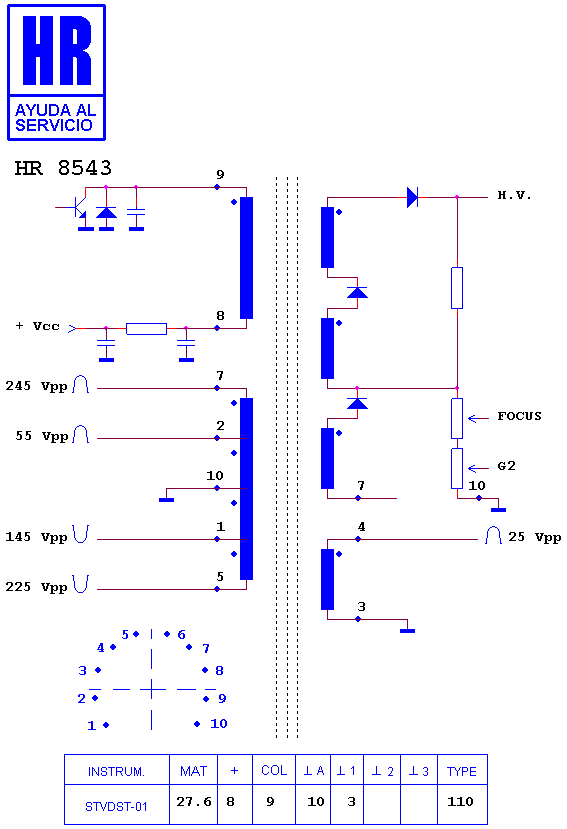

Schematic diagram for HR 8543
schematic

Manufacturer equivalents (3)

003311141 · AFS 249 · M 12-77

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7223 · HR 8157 · HR 8993 · HR 8918 · HR 8968 · HR 6594 · HR 6567 · HR 8281 · HR 80130 · HR 6519 · HR 7927 · HR 7831

Fitted to (12)

UNIMOR CHASIS SIESTA 3 · UNIMOR CHASIS UBX 2031 · UNIMOR M 646 TSO · UNIMOR M 651 TSO · UNIMOR M 652 TSO · UNIMOR M 846 TSO · UNIMOR M 851 TSO · UNIMOR M 852 TSO · UNIMOR M 900 TSO · UNIMOR M 901 TSO SAT · UNIMOR STRON 2 · UNIMOR STRONA 2
