HR 8157

type ST · family 1AP1 · 29.7 kV maximum anode voltage · 110° deflection · 5 windings · 390 g

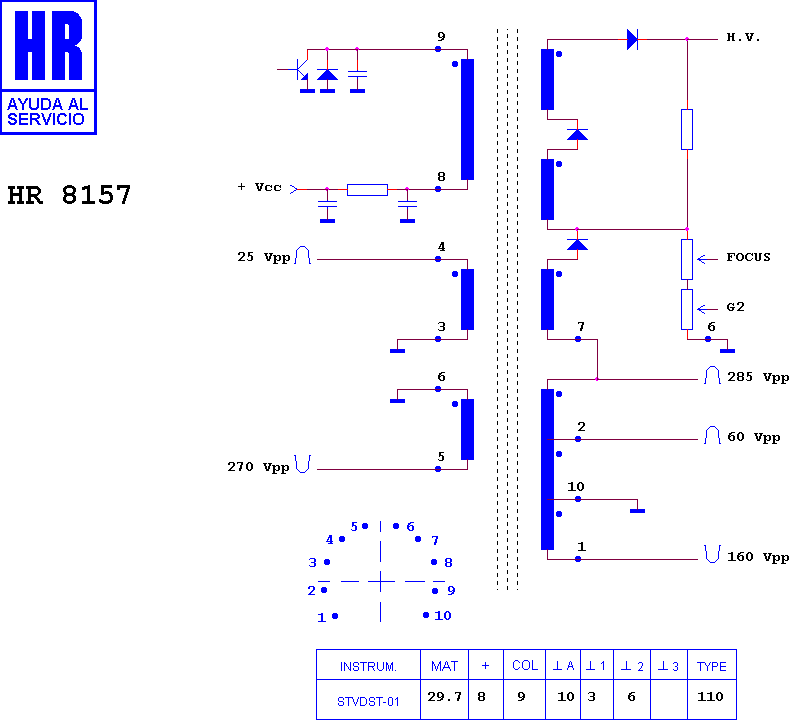

Schematic diagram for HR 8157
schematic

Manufacturer equivalents (19)

003311117 · AFS 270 · FAT30439 · G 5012-01 · HR 8157 · KN30439 · M 12-39 · M 12-39 A · PET19-B8 · PET19-B8B · PET19-B9B · RO 387 · T 90.3 · TA/825L · TA/903 · TA/903L · TAA 903 L · TR 357 · TVL 130

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8543 · HR 7223 · HR 6594 · HR 8918 · HR 8228 · HR 80082 · HR 80217 · HR 80108 · HR 7014 · HR 7013 · HR 7027 · HR 6163

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

UNIMOR 449 · UNIMOR 454 · UNIMOR 459 · UNIMOR CHASIS SIESTA 3 · UNIMOR CHASIS UBX 2031 · UNIMOR M 449 T · UNIMOR M 449 TS · UNIMOR M 449 TSO · UNIMOR M 454
