HR 7013

type ST · family 1AP1 · 25.5 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

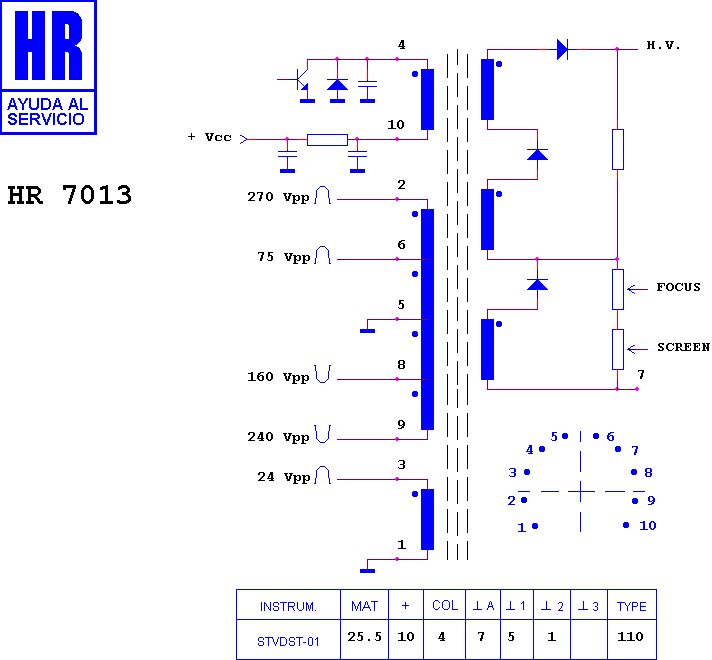

Schematic diagram for HR 7013
schematic

Manufacturer equivalents (3)

40 200 1027 · 46 200 1027 · 63.2039.000

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7070 · HR 7069 · HR 7014 · HR 7392 · HR 6242 · HR 7223 · HR 8918 · HR 6488 · HR 8543 · HR 80217 · HR 8157 · HR 6603

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
