HR 6242

type ST · family 1BP1 · 25.5 kV maximum anode voltage · 110° deflection · 3 windings · 425 g

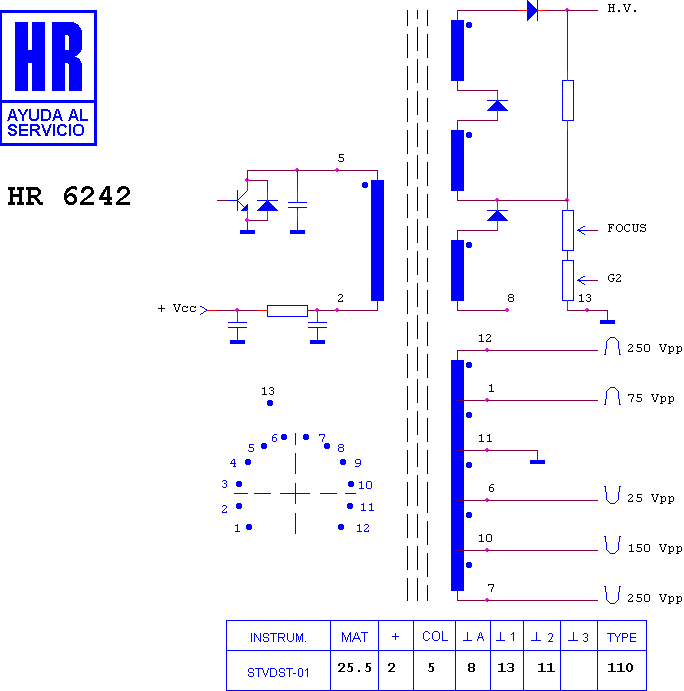

Schematic diagram for HR 6242
schematic

Manufacturer equivalents (5)

1132.0117 · 1182.0017 · 276-017479 · 276-17479 · ME/6246-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6564 · HR 6488 · HR 6603 · HR 7676 · HR 7070 · HR 7013 · HR 80051 · HR 7223 · HR 8543 · HR 8918 · HR 80059 · HR 6519

Fitted to (4)

LOEWE / LOEWE-OPTA CHASIS C 9000 33" · LOEWE / LOEWE-OPTA CHASIS C 9001 · LOEWE / LOEWE-OPTA CHASIS C 9001 32" · LOEWE / LOEWE-OPTA CHASIS DIGITAL 32"
