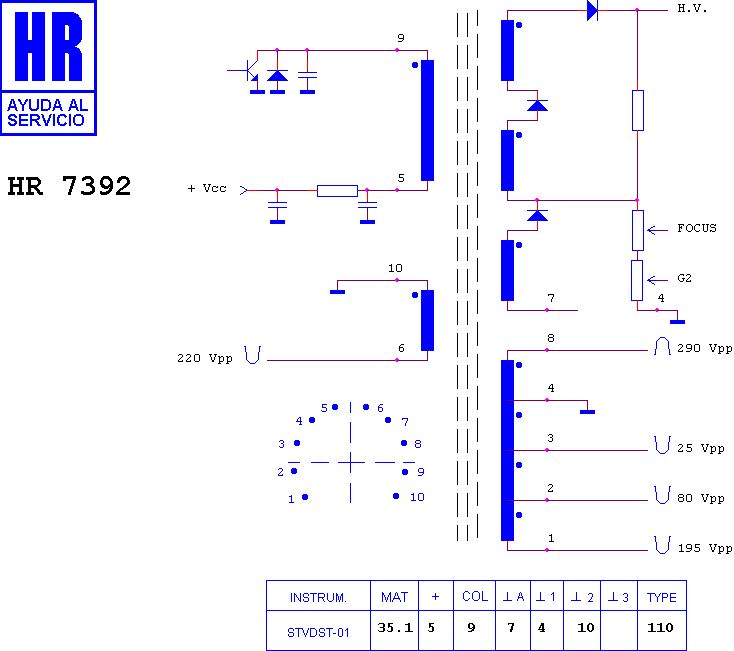

HR 7392

type ST · family 1AP1 · 35.1 kV maximum anode voltage · 110° deflection · 4 windings · 362 g

Manufacturer equivalents (1)

HR 7392-01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80024 · HR 7076 · HR 7013 · HR 8281 · HR 8993 · HR 8918 · HR 7070 · HR 7191 · HR 7014 · HR 7223 · HR 6594 · HR 7069

Search this part in the full database
