HR 6564

type ST · family 1BP1 · 25.5 kV maximum anode voltage · 110° deflection · 3 windings · 380 g

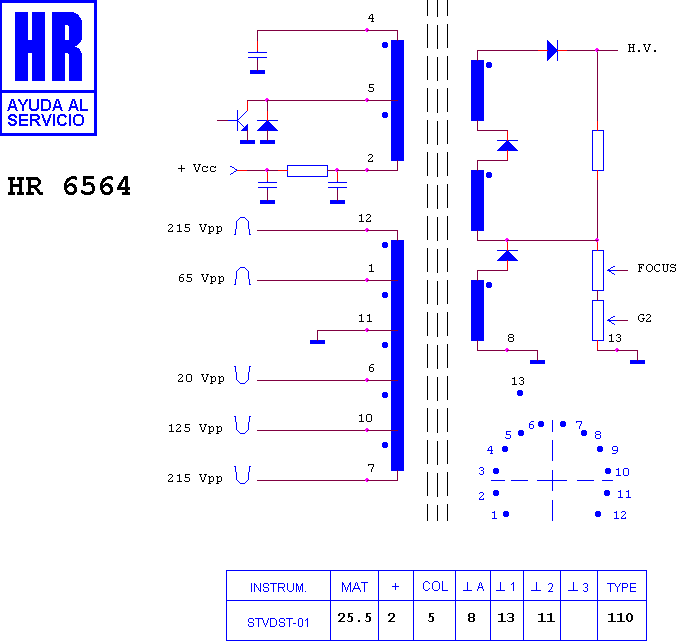

Schematic diagram for HR 6564
schematic

Manufacturer equivalents (7)

1182.1027 · 1182.1127 · 276-23916 · FAT30342 · FAT30614 · HR 6564 · KN30342

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6242 · HR 6488 · HR 6603 · HR 7676 · HR 7070 · HR 80051 · HR 80217 · HR 8543 · HR 80059 · HR 6519 · HR 80142 · HR 7069

Fitted to (3)

LOEWE / LOEWE-OPTA CALIDA · LOEWE / LOEWE-OPTA CHASIS C 9003 · LOEWE / LOEWE-OPTA CHASIS C 9003 29"
