HR 8393

type ST · family 1WP1 · 36.3 kV maximum anode voltage · 110° deflection · 3 windings · 461 g

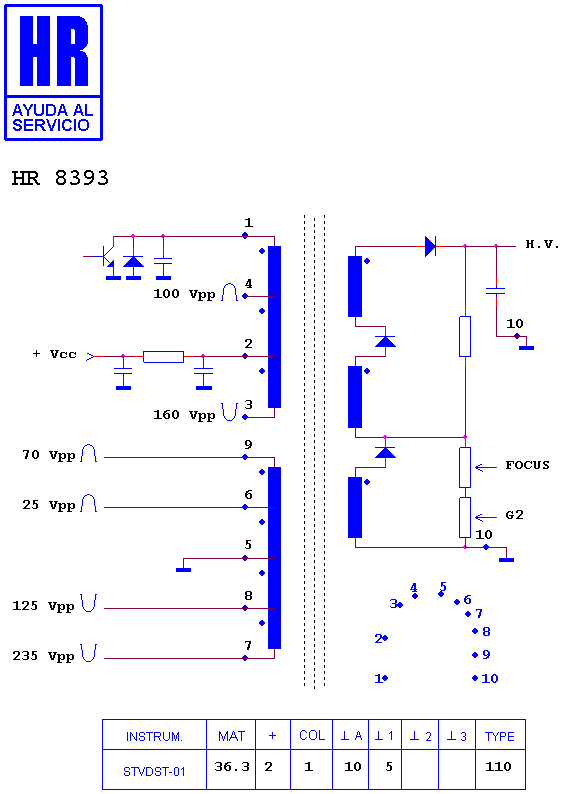

Schematic diagram for HR 8393
schematic

Manufacturer equivalents (2)

AA 26-30002 B · FTR 29 A 003

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8703 · HR 8800 · HR 7222 · HR 7614 · HR 8388 · HR 8429 · HR 6167 · HR 8769 · HR 8823 · HR 8825 · HR 80320 · HR 80069

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF POTENTIOMETERS ANDH.V. CAPACITOR CONNECTED INTERNALLY

Fitted to (2)

SAMSUNG CN 7266 · SAMSUNG CN 7266 BP
