HR 7199

type ST · family 1NP1 · 4 windings · 278 g

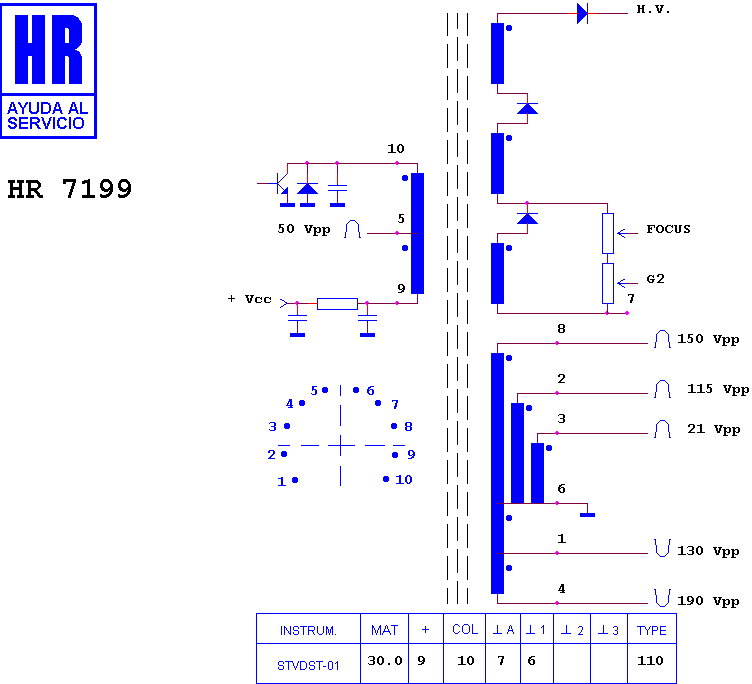

Schematic diagram for HR 7199
schematic

Manufacturer equivalents (4)

KFS 61043 · KFS60737 · KFS60749 · LR87861

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7636 · HR 7890 · HR 8568 · HR 7887 · HR 7891 · HR 7787 · HR 7864 · HR 7879 · HR 7748 · HR 7743 · HR 8692 · HR 7662

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
