HR 7879

type ST · family 1XP1 · 19 kV maximum anode voltage · 90° deflection · 3 windings · 262 g

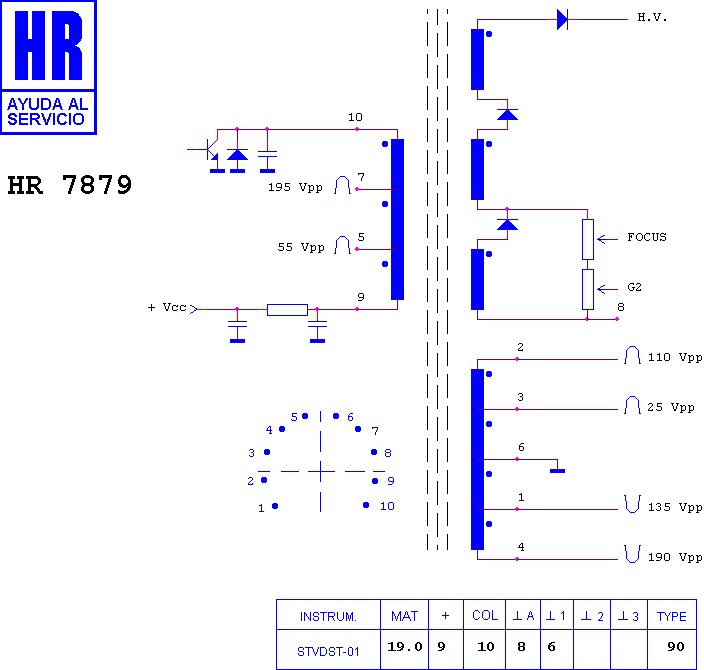

Schematic diagram for HR 7879
schematic

Manufacturer equivalents (7)

003201015 · FAT30220 · FCM 2015 CL · FCM1415CL · KN30220 · KT 10.003 · KT 6019

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7204 · HR 7787 · HR 7477 · HR 7254 · HR 7890 · HR 7748 · HR 7887 · HR 8112 · HR 7636 · HR 8568 · HR 7199 · HR 7891

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

CCE HPS 2010 A
