HR 7699

type ST · family 1VP · 31.2 kV maximum anode voltage · 110° deflection · 3 windings · 374 g

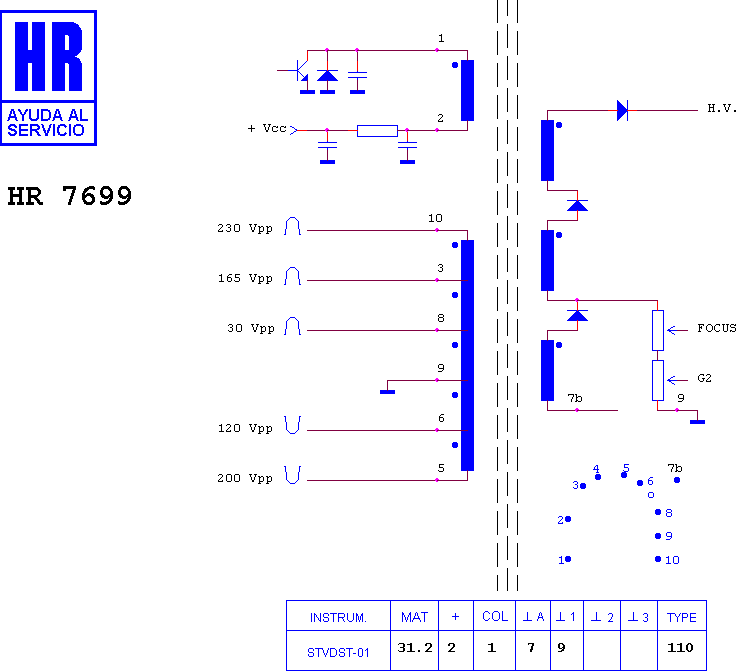

Schematic diagram for HR 7699
schematic

Manufacturer equivalents (4)

2434391 · 2434391 H · 434391 · SP 132

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8714 · HR 8473 · HR 8401 · HR 8893 · HR 8825 · HR 7717 · HR 80058 · HR 80063 · HR 7911 · HR 8519 · HR 8780 · HR 8815

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
