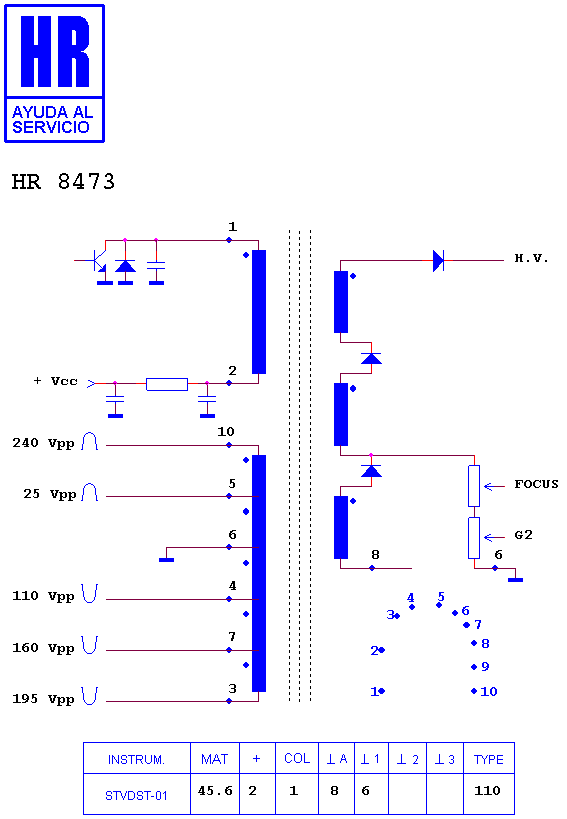

HR 8473

type ST · family 1YP · 45.6 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (2)

KFT 3 AB 054 F · KFT 3 AB 202 F1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80142 · HR 7700 · HR 8893 · HR 80058 · HR 8506 · HR 7076 · HR 6285 · HR 7861 · HR 8780 · HR 6620 · HR 7191 · HR 8664

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

PANASONIC - MATSUSHITA CTZ 21 R 2 · PANASONIC - MATSUSHITA PV-M 2077 · PANASONIC - MATSUSHITA PV-M 2079
