HR 6204

type ST · family 1BS1 · 30.6 kV maximum anode voltage · 110° deflection · 6 windings · 358 g

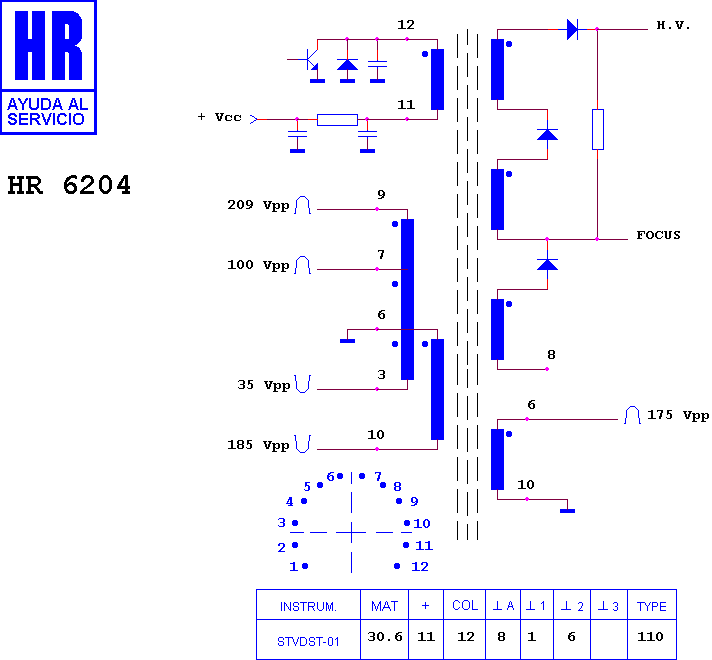

Schematic diagram for HR 6204
schematic

Manufacturer equivalents (10)

1132.0077 · 1182.0717 · 1182.6017 · 28021340 · 28025240 · 28025340 · FAT30505 · KN30505 · ME/6245-00 · ME/6345-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8764 · HR 7699 · HR 8131 · HR 8401 · HR 6298 · HR 6199 · HR 8664 · HR 8519

Fitted to (2)

SAMBER'S / NUOVA SAMBER'S CHASIS 32" · SAMBER'S / NUOVA SAMBER'S CHASIS 37"
