HR 6593

type ST · family 1BP1 · 25.5 kV maximum anode voltage · 90° deflection · 4 windings · 396 g

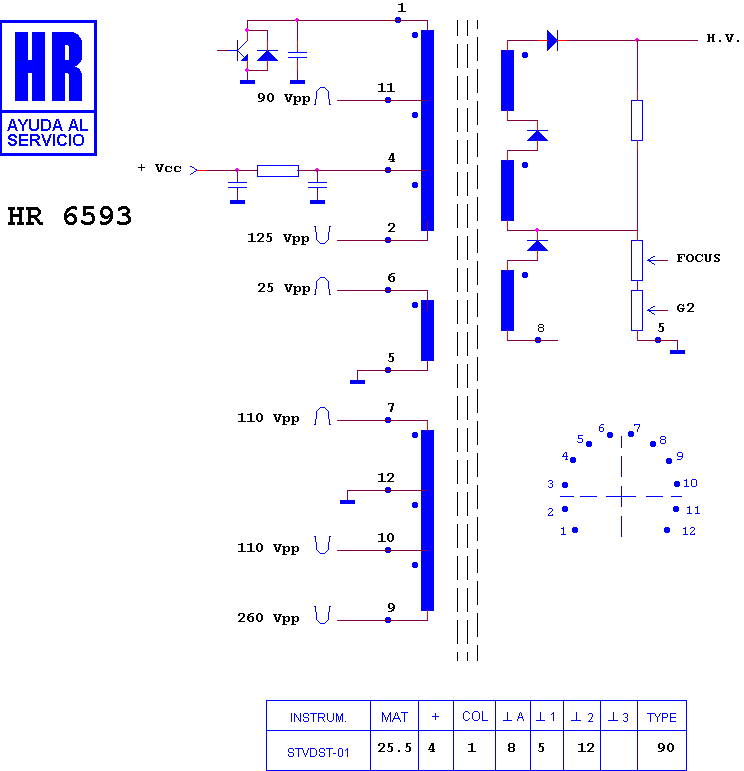

Schematic diagram for HR 6593
schematic

Manufacturer equivalents (10)

003321102 · 444 50 0058 · 444 50 0058/511 · 4444 50 0058 · 444500058A2 · FAT30526 · H 32-10 · KN30526 · RO 400 · TR 405

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8765

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

METZ 6393 · METZ CARAT SF 100 HZ · METZ CHASIS 693 100 HZ · METZ CHASIS 693 G · METZ CHASIS 693 GA-4025 · METZ CHASIS 693 GA-4068 · METZ CHASIS 693 GA-5014 · METZ CHASIS 693 GA-5065 · METZ CHASIS 693 GS 100 HZ · METZ CHASIS 693 GS-5017 B
