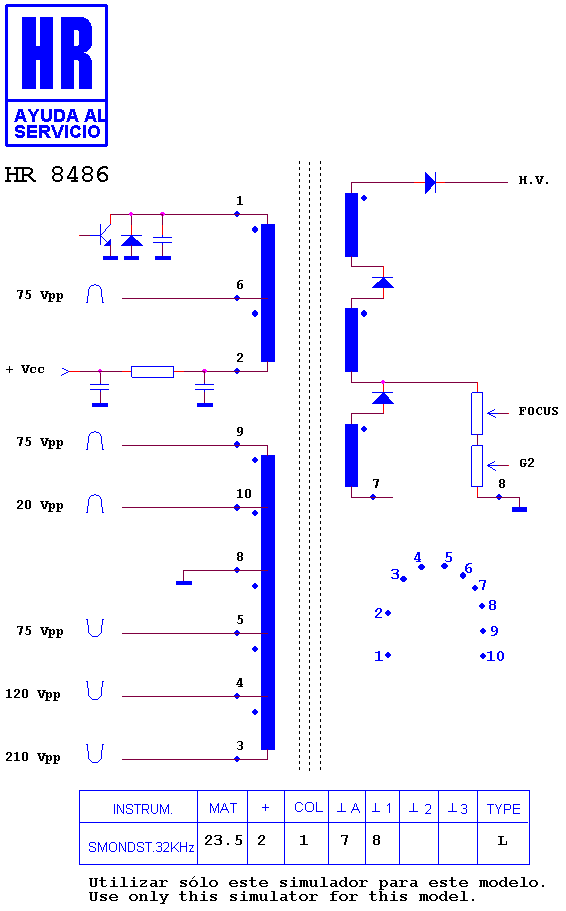

HR 8486

type SM · family 1YP · 23.5 kV maximum anode voltage · L° deflection · 3 windings · 410 g

Manufacturer equivalents (4)

043227008 R · 3227008 · 3227008 R · AD 300753

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6593

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

TOSHIBA 29 AS 41
