HR 6583

type ST · family 1BP1 · 25.5 kV maximum anode voltage · 110° deflection · 4 windings · 380 g

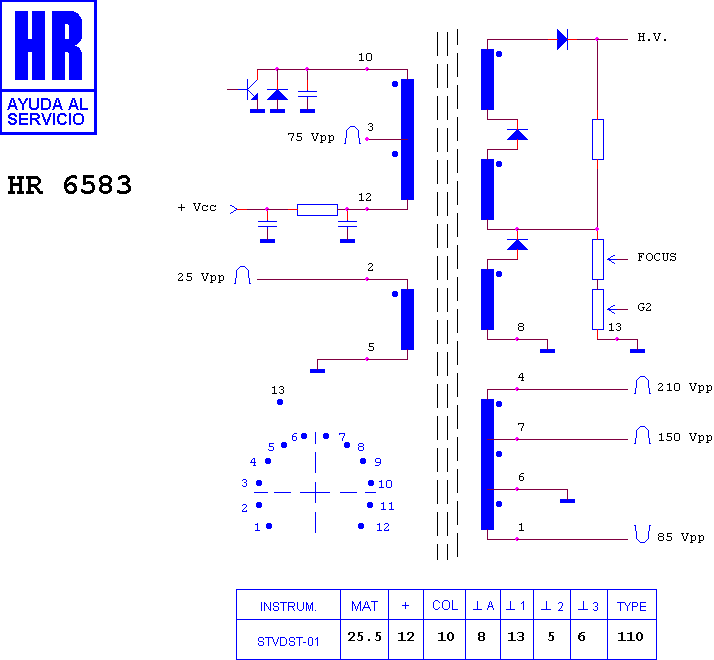

Schematic diagram for HR 6583
schematic

Manufacturer equivalents (10)

1182.1207 · 1182.1457 · 1182.1467 · 1182.1477 · 1182.1487 · 1182.1517 · 1224393 · 63.2078.100 · FAT30401 · KN30401

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6584 · HR 6555 · HR 6343 · HR 6140 · HR 8879 · HR 8234 · HR 80085 · HR 6268 · HR 8193 · HR 7329 · HR 6141 · HR 8892

Fitted to (5)

NECKERMANN 765/368 · NECKERMANN PALLADIUM · PALLADIUM 765/368 · PALLADIUM PALLADIUM · SELECO TESI 4
