HR 6171

type ST · family 1BP1 · 25.8 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

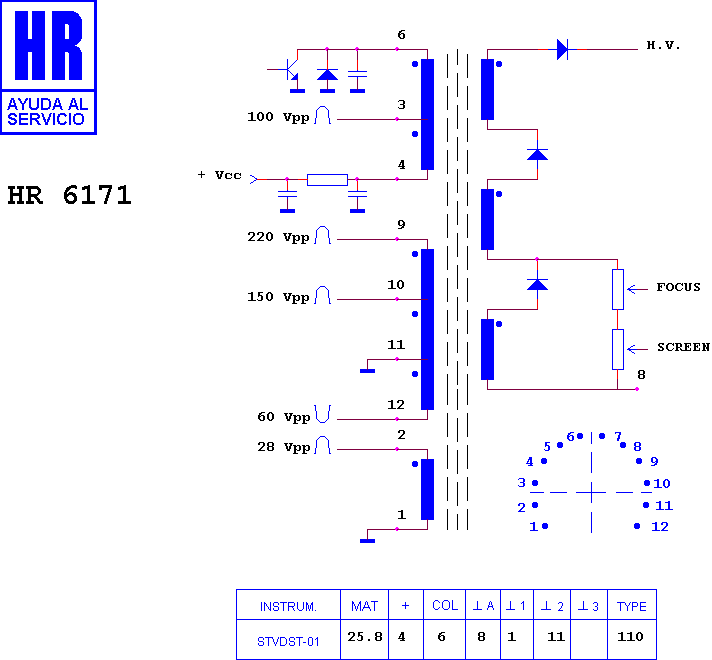

Schematic diagram for HR 6171
schematic

Manufacturer equivalents (4)

2433022 · 37009.00 · 471257.00 · 471257.01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6584 · HR 6555 · HR 80085 · HR 8879 · HR 8016 · HR 6517 · HR 6115 · HR 8234 · HR 6268 · HR 8766 · HR 80243 · HR 8193

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
