HR 8966

31.5 kV maximum anode voltage · 110° deflection · 4 windings · 374 g

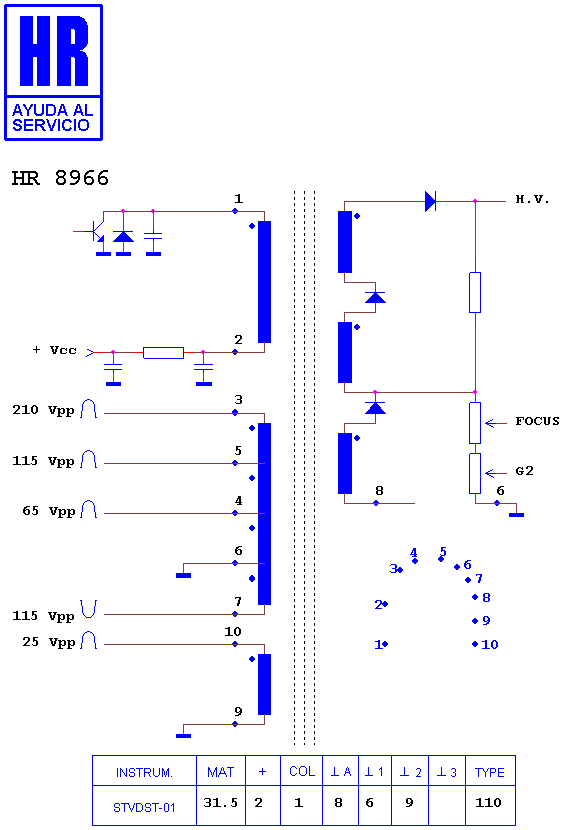

Schematic diagram for HR 8966
schematic (archived)

Manufacturer equivalents (8)

0111377 · 111377 · 1352.5079 · 1352.5079A · 358 382 20 · 37-135250-79A · HR 8966 · TCC0111377

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8320 · HR 8520 · HR 80126 · HR 8380 · HR 80057 · HR 8149 · HR 80122 · HR 8193 · HR 8596 · HR 80116 · HR 6585 · HR 8833

Fitted to (3)

SCHNEIDER 28 M 020 · SCHNEIDER SCENARO · SCHNEIDER SCENARO 28 M 020
