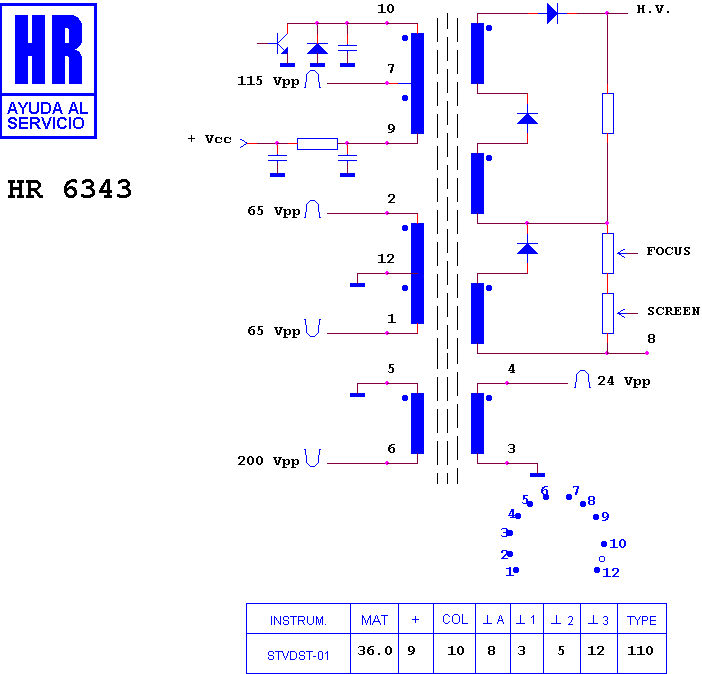

HR 6343

type ST · family 1QP · 36 kV maximum anode voltage · 110° deflection · 4 windings · 369 g

Manufacturer equivalents (2)

75 3543/730975 · 8 667 210 523 P 002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6305 · HR 6330 · HR 6340 · HR 6307 · HR 6332 · HR 6342 · HR 6325 · HR 8193 · HR 8509 · HR 8292 · HR 8838 · HR 6219

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

BLAUPUNKT 7 665 220 · BLAUPUNKT 7 665 260 · BLAUPUNKT 7 665 280 · BLAUPUNKT MARBELLA MP 45 · BLAUPUNKT MONZA SQ 25 · BLAUPUNKT MONZA SQ 25 BTX
