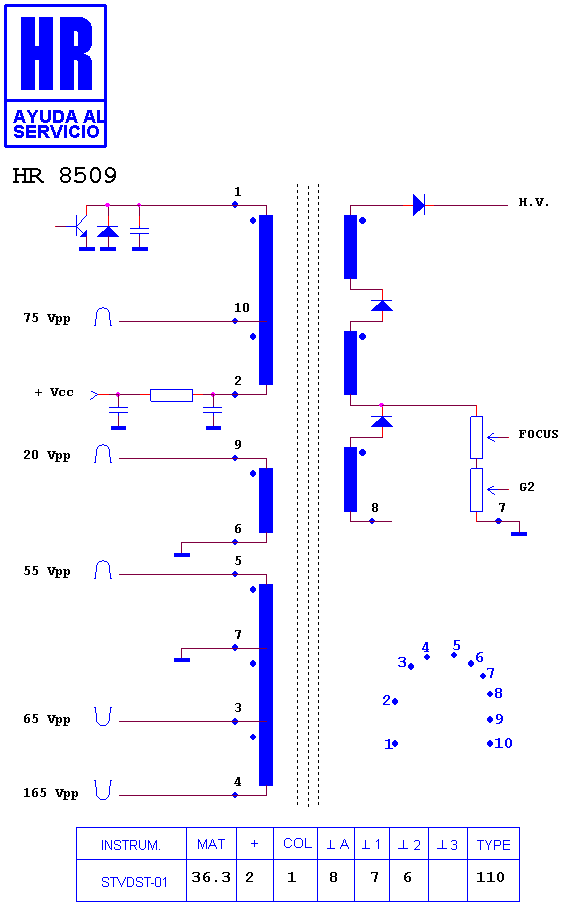

HR 8509

type ST · family 1VP2 · 36.3 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

Manufacturer equivalents (6)

010 448 9 · 104489 · FAT 30606 · KN 30606 · TLF 15570 B · TLF 15570 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8424 · HR 6680 · HR 80085 · HR 6343 · HR 7961 · HR 6307 · HR 6332 · HR 6342 · HR 8938 · HR 7476 · HR 8380 · HR 8409

Notes

COD-033 THE FOCUS 2 POTENCIOMETER IN THE HR TRANSFORMER IS NOT USED.

Fitted to (9)

PANASONIC - MATSUSHITA CHASIS ALPHA 4 · PANASONIC - MATSUSHITA TX 25 X 1 · PANASONIC - MATSUSHITA TX 25 X 1 CI · PANASONIC - MATSUSHITA TX 25 X 1 E · PANASONIC - MATSUSHITA TX 25 X 2 C · PANASONIC - MATSUSHITA TX 28 C 1 C · PANASONIC - MATSUSHITA TX 28 C 1 CI · PANASONIC - MATSUSHITA TX 28 X 1 · PANASONIC - MATSUSHITA TX 28 X 2 C
