HR 8938

26.7 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

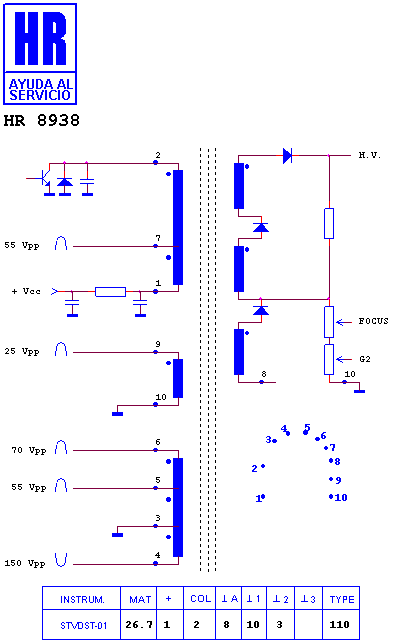

Schematic diagram for HR 8938
schematic (archived)

Manufacturer equivalents (6)

08000000327 · 1352.5051 · 1352.5051A · 8000000327 · FAT30798 · HR 8938

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8469 · HR 8316 · HR 8325 · HR 8424 · HR 8509 · HR 7961 · HR 7827

Fitted to (3)

PROLINE 28 N 1 · SELECO 70 S 4490 · SELECO ISTG
