HR 8872

type ST · family 1WD · 51.1 kV maximum anode voltage · 110° deflection · 4 windings · 474 g

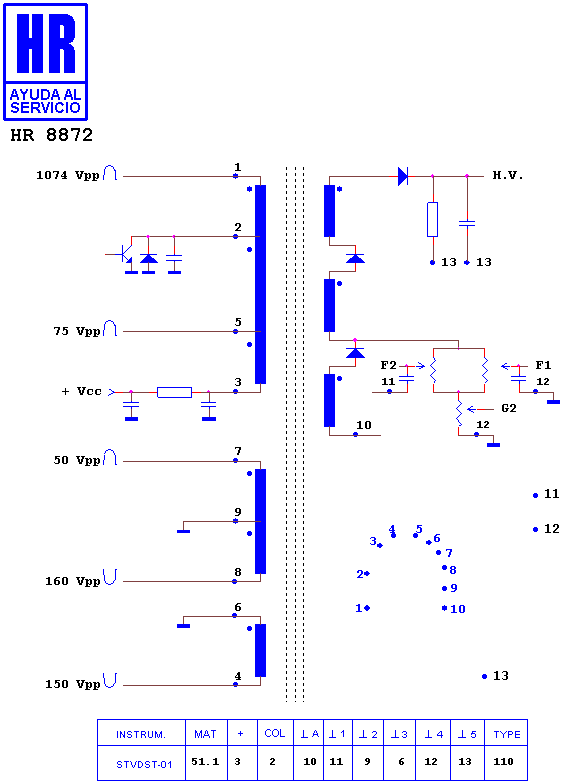

Schematic diagram for HR 8872
schematic (archived)

Manufacturer equivalents (5)

AA 26-30004 S · AA 26-30049 · FCZ 29 A 007 · FCZ 29 A 007 S · FCZ 29 A 007 Z

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80080 · HR 6539 · HR 8778 · HR 8524 · HR 8659 · HR 8028 · HR 7346 · HR 6311 · HR 6310 · HR 6312 · HR 7818 · HR 80085

Fitted to (20)

SAMSUNG CHASIS SCT 53 A · SAMSUNG CS 29 A 6 HPT · SAMSUNG CS 30 A 7 HTR · SAMSUNG CW 30 A 70 · SAMSUNG CW 30 A 70 S · SAMSUNG CW 30 A 70 SD · SAMSUNG CW 30 A 75 S · SAMSUNG CW 30 A 80 SA · SAMSUNG CW 30 A 90 SB · SAMSUNG CW 30 A 90 SD · SAMSUNG CW 30 A 905 SD · SAMSUNG CW 309 A 90 SD · SAMSUNG CW 764 · SAMSUNG CW 764 AH · SAMSUNG CW 764 AHD · SAMSUNG CW 764 AHDX · SAMSUNG CW 764 AHX · SAMSUNG CW 767 · SAMSUNG CW 767 AHPT · SAMSUNG SCT 53 A
