HR 8793

51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

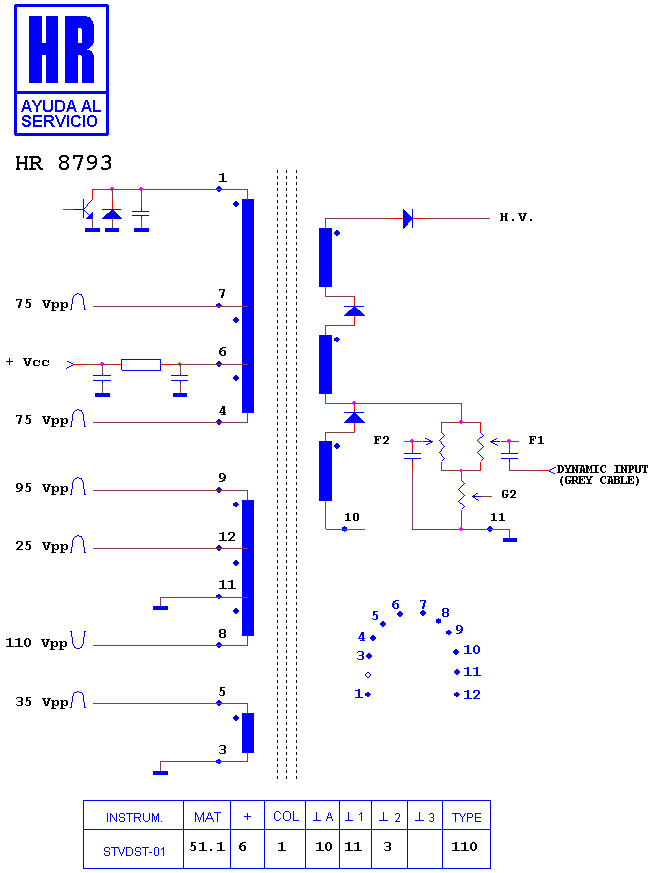

Schematic diagram for HR 8793
schematic (archived)

Manufacturer equivalents (7)

1372.7028 · 1372.7028A · 242253102516 · 53102516 · 820400075001 · HR 8793 · KN35015N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8712 · HR 8841

Fitted to (4)

PHILIPS 28 PW 9617 · PHILIPS 28 PW 9617/05 · PHILIPS 28 PW 9617/12 · PHILIPS 28 PW 9617/58
