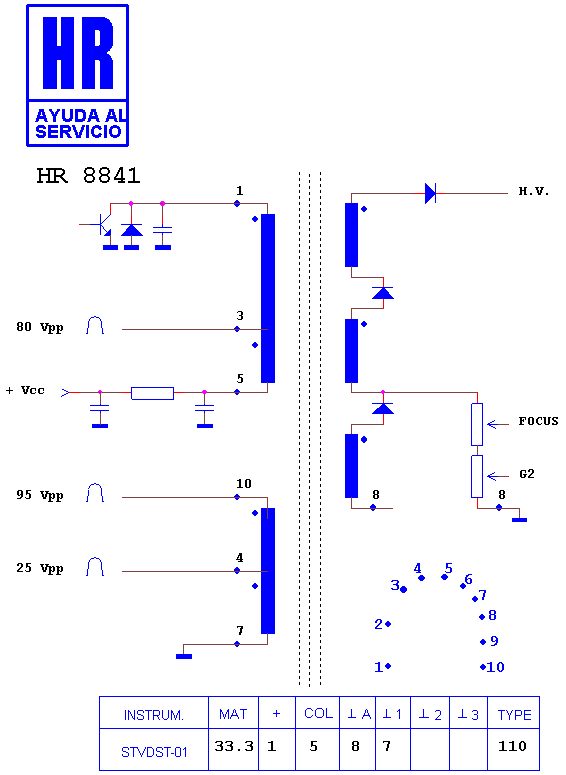

HR 8841

type ST · family 1YP · 33.3 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (2)

4835 140 67187 · JF 0501-1258

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6200 · HR 6383 · HR 80295 · HR 8793 · HR 8534 · HR 6356 · HR 7285 · HR 6208 · HR 8310 · HR 7236
