HR 6356

type ST · family 1BP1 · 23.1 kV maximum anode voltage · 110° deflection · 4 windings · 397 g

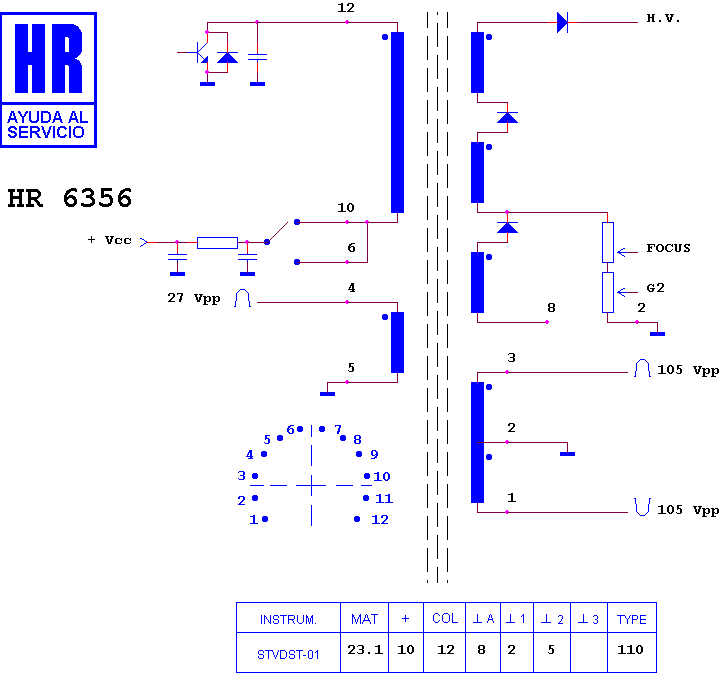

Schematic diagram for HR 6356
schematic

Manufacturer equivalents (11)

003341008 · 472740.00 · 472740.01 · 473331.00 · 8014084 · FAT30237 · HR 6356 · KN30237 · RO 37 · RO929 · TR929

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7085 · HR 6200 · HR 8477 · HR 8841 · HR 7086 · HR 7079 · HR 7285 · HR 7857 · HR 6383 · HR 80295

Fitted to (58)

BANG & OLUFSEN - B&O 2502 · BANG & OLUFSEN - B&O 2802 · BANG & OLUFSEN - B&O 3462 · BANG & OLUFSEN - B&O 3465 · BANG & OLUFSEN - B&O 3467 · BANG & OLUFSEN - B&O 3473 · BANG & OLUFSEN - B&O 3474 · BANG & OLUFSEN - B&O 3476 · BANG & OLUFSEN - B&O 3477 · BANG & OLUFSEN - B&O 3482 · BANG & OLUFSEN - B&O 3483 · BANG & OLUFSEN - B&O 3485 · BANG & OLUFSEN - B&O 3487 · BANG & OLUFSEN - B&O 3493 · BANG & OLUFSEN - B&O 3494 · BANG & OLUFSEN - B&O 3496 · BANG & OLUFSEN - B&O 3497 · BANG & OLUFSEN - B&O 3801 · BANG & OLUFSEN - B&O 3802 · BANG & OLUFSEN - B&O 3805 · BANG & OLUFSEN - B&O 3807 · BANG & OLUFSEN - B&O 3812 · BANG & OLUFSEN - B&O 3813 · BANG & OLUFSEN - B&O 3814 · BANG & OLUFSEN - B&O 3816 · BANG & OLUFSEN - B&O 3818 · BANG & OLUFSEN - B&O 3820 · BANG & OLUFSEN - B&O 3821 · BANG & OLUFSEN - B&O 3822 · BANG & OLUFSEN - B&O 3826 · BANG & OLUFSEN - B&O 3832 · BANG & OLUFSEN - B&O 3841 · BANG & OLUFSEN - B&O 3842 · BANG & OLUFSEN - B&O 3845 · BANG & OLUFSEN - B&O 3847 · BANG & OLUFSEN - B&O 3852 · BANG & OLUFSEN - B&O 3853 · BANG & OLUFSEN - B&O 3854 · BANG & OLUFSEN - B&O 3856 · BANG & OLUFSEN - B&O 3858 · BANG & OLUFSEN - B&O 3860 · BANG & OLUFSEN - B&O 3861 · BANG & OLUFSEN - B&O 3862 · BANG & OLUFSEN - B&O 3866 · BANG & OLUFSEN - B&O 3872 · BANG & OLUFSEN - B&O BEOVISION L 2502 · BANG & OLUFSEN - B&O BEOVISION L 2802 · BANG & OLUFSEN - B&O BEOVISION LX 2502 · BANG & OLUFSEN - B&O BEOVISION LX 2802 · BANG & OLUFSEN - B&O CHASIS 37XX · BANG & OLUFSEN - B&O CHASIS L 2502 · BANG & OLUFSEN - B&O CHASIS L 2802 · BANG & OLUFSEN - B&O CHASIS LX 2502 · BANG & OLUFSEN - B&O CHASIS LX 2802 · BANG & OLUFSEN - B&O L 2502 · BANG & OLUFSEN - B&O L 2802 · BANG & OLUFSEN - B&O LX 2502 · BANG & OLUFSEN - B&O LX 2802
