HR 7086

type ST · family 1AP2 · 24.3 kV maximum anode voltage · 110° deflection · 4 windings · 320 g

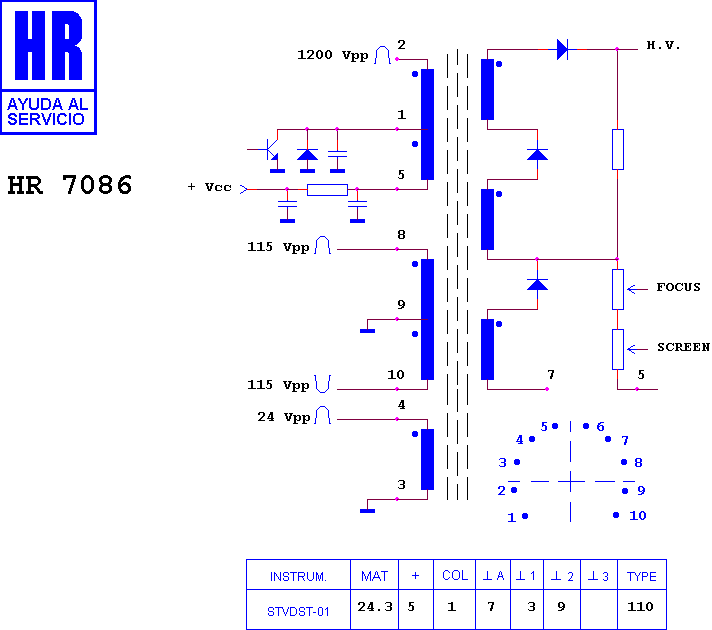

Schematic diagram for HR 7086
schematic

Manufacturer equivalents (3)

0282060 · 1105.0657 · ME/6052-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7079 · HR 7236 · HR 7085 · HR 7285 · HR 6200 · HR 8379 · HR 80295 · HR 8477 · HR 6356

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
