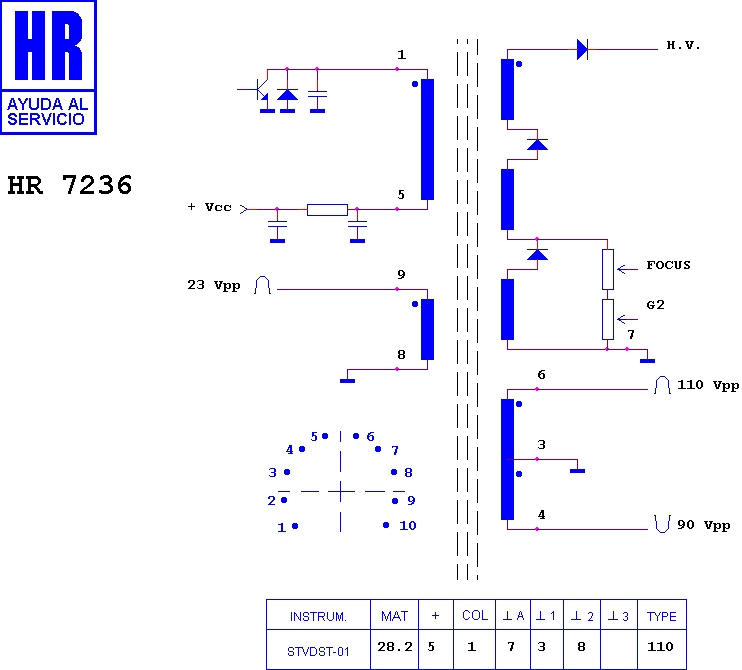

HR 7236

type ST · family 1AP1 · 28.2 kV maximum anode voltage · 110° deflection · 4 windings · 348 g

Manufacturer equivalents (1)

478016.00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7086 · HR 7079 · HR 7085 · HR 80045 · HR 8379 · HR 8477 · HR 8534 · HR 7285 · HR 80295 · HR 6383 · HR 7857 · HR 8841

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

OCE 63 OC 5001
